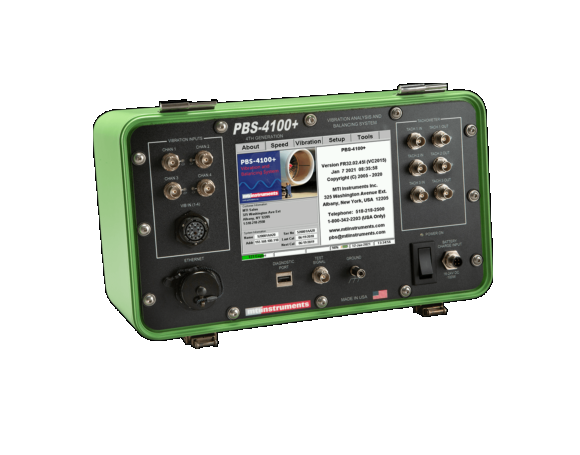

MTI instrument PBS-4100+ Gen4 ລະບົບສົ່ງສະຫນາມແລະການທົດລອງສົ່ງໄຫວພິເສດ
Laptop Computer
- Panasonic Toughbook CF-33 (2 in 1 PC)
Data Acquisition Unit (DAU)
- Power: Internal Li-Ion battery pack + AC Adapter
- Battery Life: 4 hrs (typical)
- Weight: 14.4 lbs (6.5 kg)
- Dimensions: 10 x 8 x 14 in (25.4 x 20.4 x 35.6 cm)
- Durability: 4 ft drop on any side
Vibration Measurement
- 4 Input Channels
- 0 to ±10 Volts Peak
- 5 Hz to 25 kHz
Speed Measurement
- 3 Input Channels
- 1/REV, N/REV, and Odd-Tooth types (long, short, offset)
- 100 mV to 200 Volts Peak-Peak
- 150 to 100,000 RPM
Balancing
- One Shot (stored influence coefficient) or Trial Weight
- Up to 20 speeds, 4 channels, and 2 planes simultaneously
- Included Software
- 150 to 100,000 RPM
