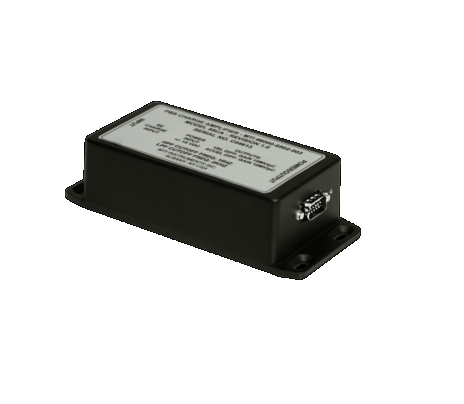

MTI instrument 55CA ເຄື່ອງເພີ່ມສະຫນັກຊ່ອງດຽວທີ່ທົນທານ (Plain Lid, Microdot S-50)
CHARGE INPUT : Single-ended
Connector : Microdot S-50
Maximum Charge : 10,000 pC peak
CMMR (differential): >40dB @ 500Hz
OUTPUTS : Acceleration and Velocity
Connector : DB-15 male (pins)
Output Impedance : <50Ω
DC Output Offset : <10 mV
Linear Output Voltage : 20 V peak-peak
Output Current : 10 mA maximum
Residual Noise (RTD) : <1.0 mV RMS maximum at gain =1 mV/pC; <4.0 mV RMS max at gain = 10 mV/pC
TRANSFER CHARACTERISTICS:
Gain : 1, 4, or 10 mV/pC
Gain Error : < ±1% (nominal) ±2% (max)
Temperature Stability : Better than ±1% over operating range
FREQUENCY RESPONSE:
High Pass (-3dB point): 10 / 15 / 20 / 25 Hz ±10% (4th order Butterworth)
Low Pass (-3dB point): 10k / 5k / 2k / 500 Hz ±5% (1st order)
POWER REQUIREMENTS:
Two input power options: #1: 20-30 VDC @ 80 mA operational; #2: ±12 VDC @ ±60 mA operational
Warm-up Time : 60 seconds
PHYSICAL CHARACTERISTICS:
Dimensions : 1.6” H X 2.6” W X 4.77” D (40.6 mm x 66 mm x 121mm)
Weight : 7.7 oz. (0.2 kg)
Case Material : Aluminum
Mounting : Flange (DIN optional)
ENVIRONMENTAL CHARACTERISTICS:
Operating Temperature : -4ºF to 140ºF (-20ºC to 60ºC) No frost
Storage Temperature: -40ºF to 212ºF (-40ºC to 100ºC)
Humidity: 95% relative humidity, non-condensing
Vibration : 8 G peak from 20 Hz to 1 kHz
Shock : 50 G peak
