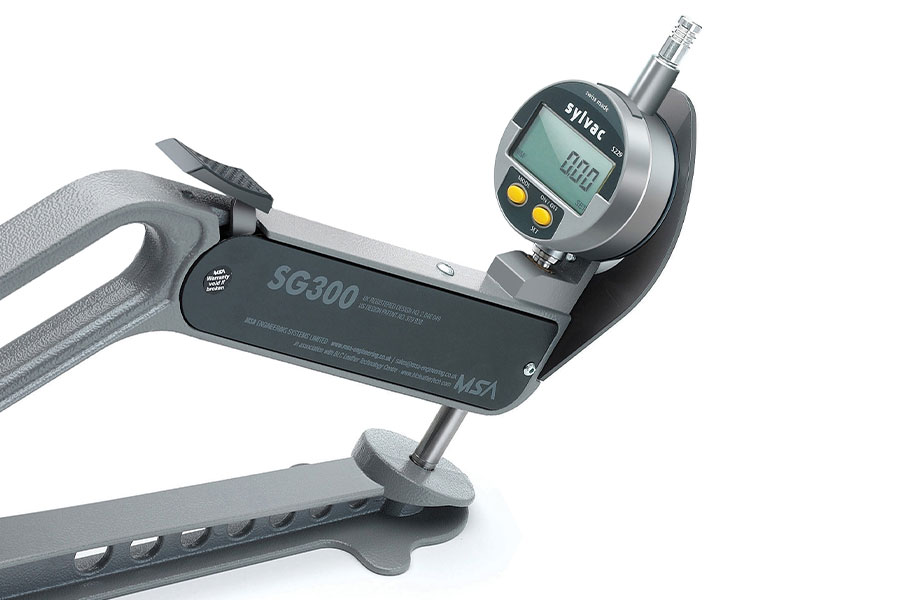

MSA SG300D ວັດ​ສະ​ດຸ​ (0.01mm, digital display)

Display set to 0.01mm divisions

Spring Force (Equivalent): 500 gf/cm2 (393g ± 10g)

Calibrated Measuring Range: 0.0 to 20.0mm ± 0.05

Anvil - to ISO 2589

Presser Foot:Flat, Circular, Ø10.0mm (moves normal to face of anvil)

Throat Profile:300mm D, 95mm H (MAX)

Net Weight: 1.3Kg

Dimensions:  48 x 18 x 7.5cm

The SG300 Substance Gauge is ergonomically designed to give perfect balance and is able to measure a greater depth of softer material than conventional units due to its unique triangular shaped frame.

The frame presents the dial indicator in the line of sight of the operator, consequently providing the optimum reading position (dial can be read without tilting the instrument and without danger of error due to parallax). The unit is also designed to be held in either hand, leaving the other free to insert material to be checked. Additionally, the base of the frame has been designed to allow the gauge to be bench mounted (with optional clamp), or to stand upright when not in use.

The SG300 is available as a conventional analogue unit (graduate in 0.1mm division), or as an electronic digital unit (displaying figures to 0.01mm/0.0005*). The digital version features a USB interface, thereby enabling links to be made to a computer for data manipulation and storage. Using electronic test equipment, both versions can be calibrated precisely and re-set to original factory parameters conforming to ISO 2589:2002

Re-engineering and extensive design modifications mean that the new generation SG300 offers a number of advantages over previous models. A lighter frame means that the unit now weighs around 28% less (at 1.3Kg compared with 1.8Kg previously). The rigidity of the gauge has been improved by 40%.
