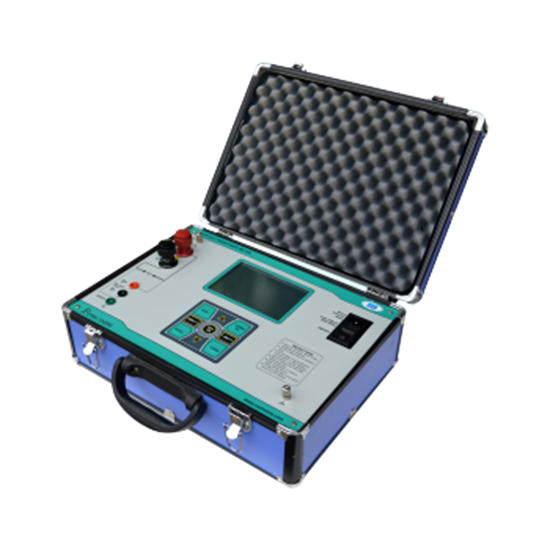

MOTWANE PCRM-100SM Contact Resistance Meter (100Amp DC)
Manufacturer: MOTWANE
Model: PCRM-100SM
Origin: India
Warranty: 12 months
Test Current: 100Amp DC
Range & Resolution: 200uΩ with 0.1uΩ
2000uΩ with 1uΩ
Accuracy: ±2% of reading 1 Digit
( From 10% of the range)
Measurement Priciple: Four wire measurements
Display: 3½ LCD with backlit
Memory: 100 Test
Power Supply: 100V to 250V, 50 Hz ±10Hz
Power Consumption: 35VA
Operating Temperature: 0-50° C
Storage Temperature: 0- 50° C
Humidity: less than 95% RH, non condensing
Dimension( D x W x H): 320 x 435x 188
Weight: 7Kg Approx.
Charging Time: 16 hours
Standard Accessories: 15mtr heavy duty lead set with C Clamp 75mm opening; Master Earthing lead set( 5mtr); Power Cord; User Manual; Calibration Certificate; Spare fuse(250mA/250V slow blow); Carry Case
Optional Accessories: 22mtr heavy duty lead set: C Clamp 50mm jaw size; C Clamp 100mm jaw size; C Clamp 150mm jaw size; heavy-duty crocodile clip 32mm jaw size
15mtr cable( heavy crocodile chip 32 mm opening)
