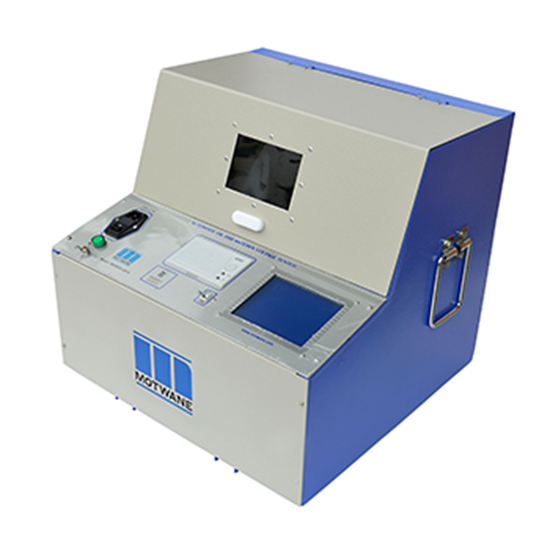

Motwane OTS-A Fully Automatic Transformer Oil Test set
Manufacturer: MOTWANE
Model: OTS-A
Origin: India
Warranty: 12 months
Power supply: 230V, 50Hz ±10%, 1 Phase
Power consumption: 200VA
Output voltage (in KV): 0-100kV (OTS - 100A); 0 - 80kV (OTS - 80A); 0 - 60kV (OTS - 60A)
Voltage Accuracy: ±1% ± 2digits
Voltage Resolution: 0.1kV
Voltage rise rate: 0.5, 1,2,3 & 5kV/sec ( Selectable )
Switch-off time: <10 ms
Ambient temperature measurement: 0 … 99 °C
Temperature resolution: 01°C
Humidity measurement: 0 - 100%
Display: Large LCD display with touchpad
PC Interface: USB
Printer: Inbuilt Thermal Printer
Internal Memory: 100 test results
Environmental condition: 0 C to +55 C , <90% RH, Non condensing
Dimension ( L X W X H ) mm: 465 X 510 X 445
Weight: 48Kg approx
Safety Standards: IEC 61010-1, EMC 61326
Standard Accessories: Oil test vessel with mushroom electrode assembly; Magnetic oil stirrer ; Lifting stick for magnetic stirrer; Go - No - Go gauge Mains cord ; User manual; Calibration Certificate ; Earth lead; Mains cord ; Spanner ; Spare fuses
Optional Accessories: Voltage Calibrator; Oil test vessel with Spherical Electrodes ; Oil test vessel with Cylindrical Electrodes
