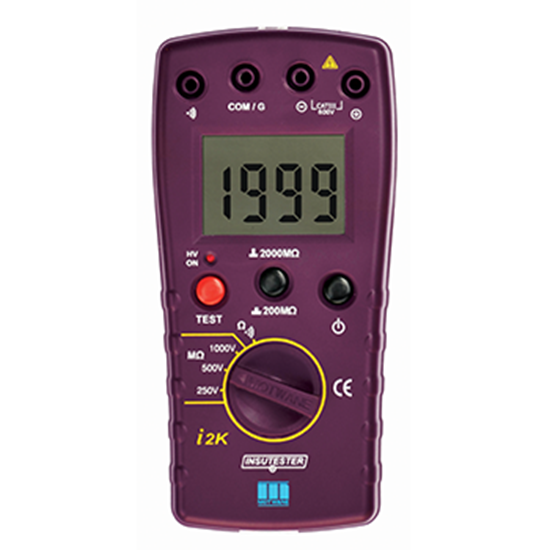

MOTWANE i2K Digital Insulation Tester (200MΩ, 2000MΩ)
Manufacturer: MOTWANE
Model: i2K
Origin: India
Warranty: 12 months
Display : 3 ½ digit LCD
Enclosure Material : ABS casing
Dimensions (W x H x D) : Approx.175 mm x 85 mm x 41mm
Weight : Approx.425gm. (With battery)
Over range indication : Indicated by displaying “1”
Operating Temp. : 0˚C to 50˚C
Storage Temp. : -25˚C to 60˚C
Relative Humidity : 90% RH at 40°C max (non condensing)
Battery : 6 X 1.5V AA cells IEC LR6 Alkaline
Low Battery Indication : “LO BAT” is displayed below 6.1V approx
Insulation Resistance MΩ: 200MΩ; 0.1MΩ; ± (5% ± 5); 230 DC/AC rms 30 sec
2000MΩ; 1MΩ; ± (5% ± 5); 230 DC/AC rms 30 sec
Test Voltage: 250V; ± (10% ± 5); 230 DC/AC rms 30 sec
500V; ± (10% ± 5); 230 DC/AC rms 30 sec
1000V; ± (10% ± 5); 230 DC/AC rms 30 sec
Continuity: 0-19.99Ω; 0.01Ω; ± (3% ± 5); 230 DC/AC rms 30 sec
Standard Accessories: Crocodile Test lead set with 1 meter long; Instruction Manual; Batteries 6x1.5V AA, Alkaline( IE LR6); Calibration certificate
Optional Accessories: Test Lead Set with one end pointed tip and another with 4mm shrounded banana
