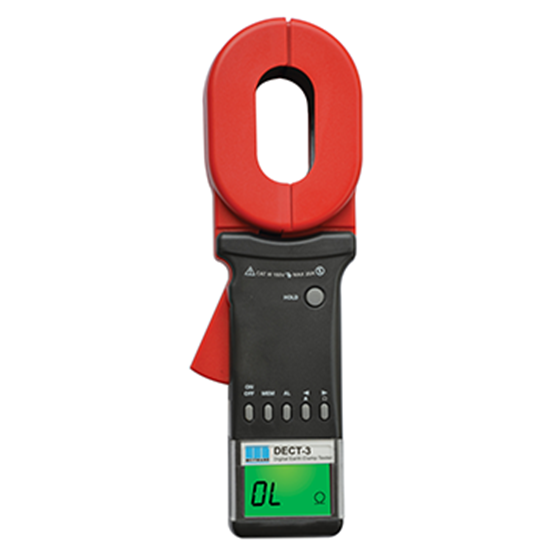

MOTWANE DECT-3 ເຄື່ອງທົດສອບ Clamp (0,01~1200Ω)
Manufacturer: MOTWANE
Model: DECT-3
Origin: India
Warranty: 12 months
Display: 4 digit LCD , 47 mm X 28.5 mm
Resistance Measurement Range: 0.01Ω to 1200Ω
Current Measurement Range: 0 to 20 A
Memory Storage Facility: 99 records
Computer Interfacing: RS 232 for uploading the stored data and analyzing at later time
Single Measurement Time: 0.5 Second
Resistance Measurement Frequency: > 1 KHz
Current measurement Frequency: 50 / 60 Hz
Sound & Light annunciator: Beep sound, Flashing symbol
'AL' key to turn on-off & setting the sound & Light alarm
Selection range of resistance for setting alarm value: 1 – 199Ω
Selection range of current for setting alarm value: 1mA - 499 mA
External Magnetic Field: < 40 A/m
External Electric Field: < 1V/m
Power Source: 6VDC (4x1.5 V AA alkaline battery)
Auto Power Off: approx 5 minutes
Environmental Working Temperature: 00°C to 50°C
Relative Humidity: 10% to 90%
Jaw Size: 65mm X 32mm
Net Weight (Including Batteries): 1160 gms
Dimension (L x B x H): 285mm x 85mm
Resistance:
0.010-0.099 Ω; 0.001 Ω; ± (1% + 0.01Ω)
0.10-0.99 Ω; 0.01 Ω; ± (1% + 0.01Ω)
1.0-49.9 Ω; 0.1 Ω; ± (1% + 0.1Ω)
50.0-99.5 Ω; 0.5 Ω; ± (5% + 5Ω)
100-199 Ω; 1 Ω; ± (5% + 5Ω)
200-395 Ω; 5Ω; ± (10% + 10Ω)
400-590 Ω; 10 Ω; ± (10% + 25Ω)
600-880 Ω; 20Ω; ± (20% + 30Ω)
900-1200 Ω; 30 Ω; ± (25% + 30Ω)
Current:
0-9 mA; 0.05 mA; Unspecified
10-99 mA; 0.1 mA; ± (2.5% + 20mA)
100-300 mA; 1 mA; ± (2.5% + 20mA)
0.30-2.99 A; 0.01 A; ± (2.5% + 0.15mA)
3.0-9.9 A; 0.1 A; ± (2.5% + 0.5mA)
10.0-20.0 A; 0.1 A; ± (2.5% + 1A)
Standard Accessories: Carrying Case, Standard Loop Resistance of 5.1 Ω, Instruction Manual, RS 232 Cable, PC Soltware CD, Calibration Certificate
