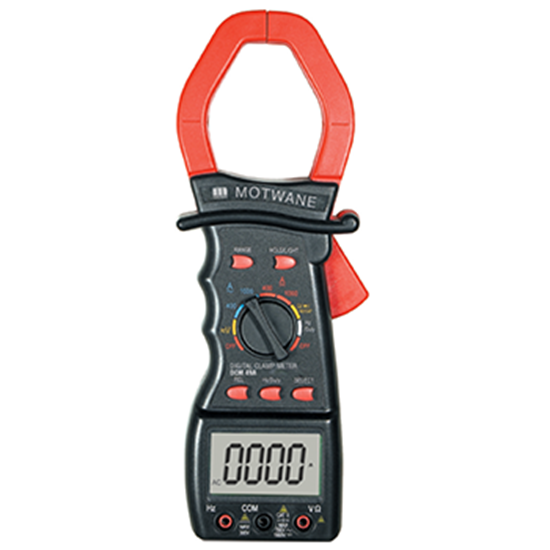

MOTWANE DCM49A Clamp Meter (AC/DC 1000A)
Manufacturer: MOTWANE
Model:DCM49A
Origin: India
Warranty: 12 months
Dimensions: 260mm x 91mm x 44.5 mm( approx)
Weight: approx 500gms
Supplied Accessories: Pair of Leads, Instruction Manual, Battery Installed
Safety: In accordance qith IEC61010-2-32, double insulation DC 1000V and AC 700V, CAT-II and polution degree II
DC Voltage:
4V; 0.1V; ± 1.5% + 10d
40V; 1V; ± 1.5% + 10d
400V; 0.1V; ± 1.5% + 10d
1000V; 1V; ± 1.5% + 10d
Resistance:
400Ω; 10Ω; ± 1% ± 5d
4KΩ; 1KΩ; ± 1% ± 5d
40KΩ; 10Ω; ± 1% ± 5d
400KΩ; 1KΩ; ± 1% ± 5d
4MΩ; 10Ω; ± 1% ± 5d
40MΩ; 1KΩ; ± 1% ± 5d
AC Voltage:
4V; 40Hz-400Hz; ± 1.5% + 10d
40V; 40Hz-400Hz; ± 1.5% + 10d
400V; 40Hz-400Hz; ± 1.5% + 10d
700V; 40Hz-400Hz; ± 1.5% + 10d
Frequency: 10KHz, 4V, ± 0.5% ± 10d
Duty Cycle:0.1%-99.9%; 0.1%; 4V
Operating Temperature: O°C to 40°C , <80% RH (noncondensing)
Storage Temperature: -10°C to 60°C , <80% RH (noncondensing) battery removed
Temperature Coefficient: 0.1x accuracy/ deg C
Power Sourse is one 9V battery NEDA 1604 /6F22/ 006P
Auto power OFF: 30 mins of idle condition
