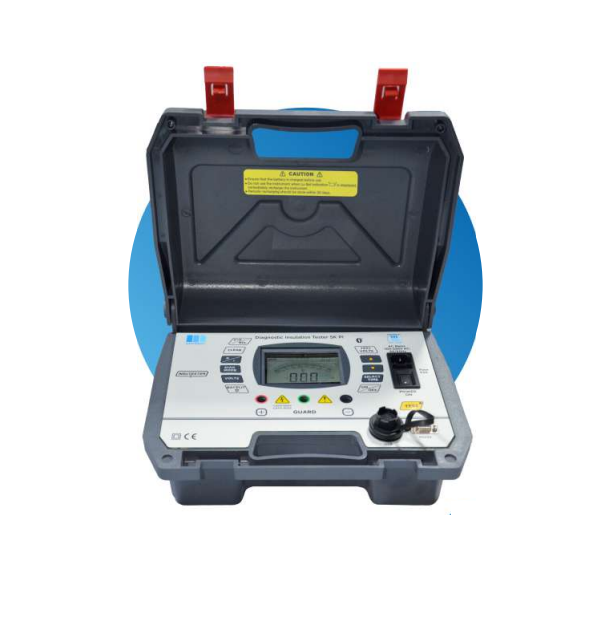

MOTWANE 5K PI 3mA Diagnostic Insutester (3mA)
SPECIFICATIONS
Mains Power Supply: 100V to 230v Ac, 50/60Hz
Battery Power Supply: 4 x Replaceable Battery Li-ion 3.7v 3200mAh
Battery Backup: Approx. 5 hours of continuous testing at 5KV on 250 MΩ load
Auto Power Off: Auto power off: Instrument turns off after 5 minutes if non-use to conserves battery life
Battery Charge: Battery charge time 3 hours deep discharge, 2.5 hours normal discharge
Test Voltage: Test voltage 250 V, 500V, 1000V, 2500V, 5000V. Lock test voltage 250 V to 5 kV in 50V steps
Test voltage accuracy: ±5%
Resistance Range: Resistance range 10 k to 50 TΩ @ 5 kV,
Accuracy At 25°C: ±(5% of reading + 5 digits) upto 1 TΩ; ±(10% of reading + 5 digits) 1 TΩ to 50 TΩ
Guard Terminal Performance: 300kΩ + 10 %
Display Range Analogue & Digital: 5KPI 6mA : 1KΩ to 50TΩ; 5KPI 3mA & 5mA: 1KΩ to to 10.00 TΩ
Short Circuit/Charge Current: (±5% ±0.2 nA at all voltages) at 23°C
Audio-visual warnings available: 1KΩ to 50TΩ
Capacitor Charging Time: ≤5 sec per μF
Capacitor Discharge Time: ≤ 2 sec per μF
Capacitance range: 10nF to 50μF; Measuring range C: 50 μF*; Test Voltage set above 500V
Capacitance Measurement Accuracy: ± (10% of readings + 5 nF)
Current Range: 5K PI with 3mA: Up to 3mA; 5K PI with 5mA: Up to 5mA; 5K PI with 6mA: Up to 6mA
Current Accuracy: At 20°C; 10nA to 3/5/6mA ± (5 % of reading + 5 digits); 0 nA to 9.99 nA ± (10 % of reading + 5 digits )
Interference: 1mA rms per 250V test voltage up to a max. of 4mA
Voltmeter Range: 0 ~ 600 Ac and DC
Accuracy: ±(5% of reading + 5 digits)
Input resistance: 100MΩ Approx.
Timer Range: Programmable timer from 0 sec to 99 minutes.
Memory Capacity: Internal Memory storage of 1000 readings.
Interface: Bluetooth Communication.; Galvanic isolated RS232, USB port.
Remote operation: Through PC by using, Rs232 cable and USB cable.
ENVIRONMENTAL
Operating Temperature Range: 0°C to 55°C
Storage Temperature Range: -20°C to + 70°C.
Humidity: < 95% RH Non-Condensing.
PHYSICAL SPECIFICATIONS
Dimensions: 190 mm X 285 mm X 365 mm (Approx.)
Gross Weight: 4 Kg (Approx.) Excluding accessories; 9 Kg (approx.) With Accessories
SAFETY
IP 54
Safety in accordance with EN 61010-1,
Measurement CAT III 600V / CAT IV 600V
EMC in accordance with EN 61326-1
ACCESSORIES
3m Test lead set - for 3mA & 5mA : 01 Set.
10m Test lead set - for 6mA : 01 No.
Main Power Cord : 02 Nos.
Mains Protected fuse : 01 No.
Instruction Manual : 01 No.
Carrying Bag : 01 No.
Pen Drive : 01 No.
USB 2.0 A/B cable 1.5 mtr long : 01 No.
Test & Calibration Certificate : 01 No.
Communication cable RS232 male to female serial cable 9 pin : 01 Set.
