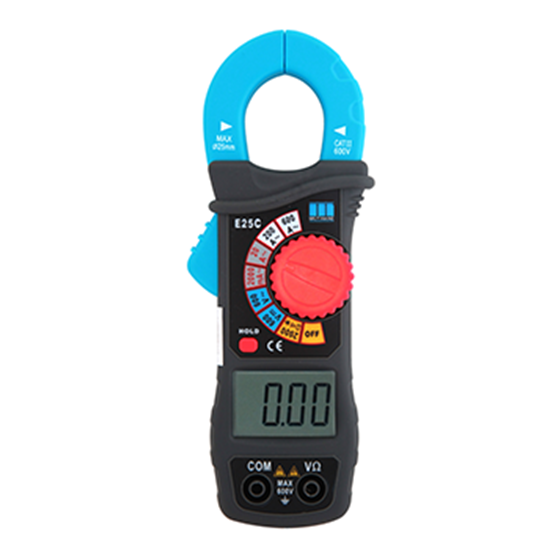

MOTWANE E25C Clamp Meter (AC 600A)
Manufacturer: MOTWANE
Model:E25C
Origin: India
Warranty: 12 months
3 ½ LCD display, max reading "1999" with LOBAT & Polarity Indication.
Max jaw opening: 25mm
Measurement principle: double integration A/D transform.
Range select: manual
Measurement speed: 2.5~3 times/sec
Polarity display: it displays "-" as inputting negative polarity.
Overloading display: only 1 appears on the display screen.
Data hold function: “ H ” is shown on the top of LCD.
Low battery display: it displays on the left of LCD.
Power supply: 2×1.5V
Dimensions: 170×65×27 mm
Weight: approx. 140g (without battery)
Operating Temperature: 5°C to 45°C
Storage Temperature : -10°C to 50°C
AC curent: 2000mA, 1mA, ±(3.0%+5);
20A, 10mA, ±(2.5%+5);
200A, 0.1A, ±(2.5%+5)
600A, 1A, ±(3.0%+5)
AC Voltage: 600V, 1V, ±(2.0%+5)
DC Voltage: 600V, 1V, ±(1.2%+2)
Resistance : 0-2000Ω, 1Ω, ±(2.0%+5)
Diode Test: Yes
continuity Buzzer: Approx <40 Ω
Accessories: User's manual; Test lead; Battery 2 x 1.5V
