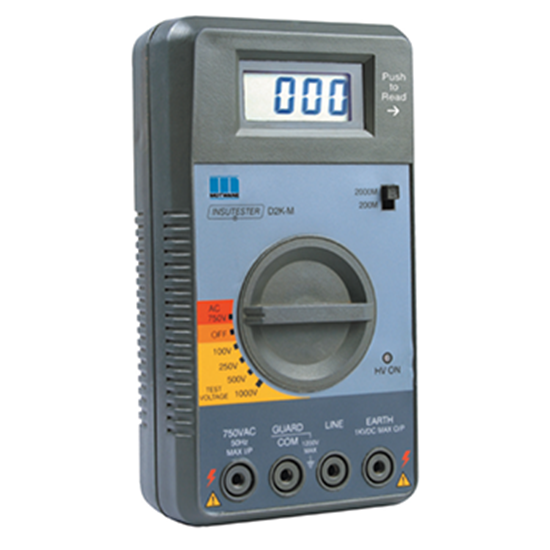

MOTWANE D2K-M Digital Insulation Tester (200MΩ & 2000MΩ)
Manufacturer: MOTWANE
Model: D2K-M
Origin: India
Warranty: 12 months
Display: 3½ digit LCD, 1999 counts, LO BAT indiction
Over range indication" 1 is displayed in most Significant digit
Dielectric strength: Withstands 1 min after application of 2000VAX( rms) between measuring terminal and the case
Temp coefficient: ± 0.2%/°C
Operating and Relative Humidity: 0 to 45 <90% RH at 40 °C non condensing
Storage and Relative Humidity:-10 to 70 <90% RH at 40 °C non condensing
Dimensions: 100mmx 180mmx 54mm; 0.8kg
Electrical Specifications:
Resistance: 200MΩ and 2000MΩ; ± 2% ± 5 digits( from 10% to 90% of the range)
Output Voltage: 100V/ 250V/ 500V and 1000V DC; ± 5%( with 1000MΩ i/p impedance probe)
Short Circuit Current: 1mA approx for all Test Voltage
AC Voltage Measurement: 0 to 750V at 50Hz:( ± 5% + 5 digt)
Power Source: Operate from internal rechargeable battery
Battery Backup: 1 to 3 hours for load from 20 to 2000 M
STANDARD ACCESSORIES:
1. A set of low noise one meter long leads with multipurpose crocodile
2. Battery Charger
3. Instruction Manual
4. Test Lead pair for AC Voltage Measurement
