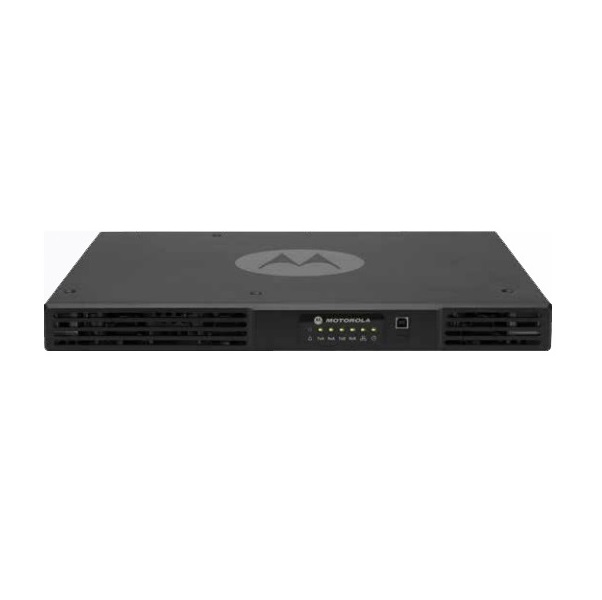

MOTOROLA SLR5300 ຊ້ຳ (403 - 470MHz; UHF 50W)
GENERAL SPECIFICATIONS
- Frequency Range: 403 - 470MHz
- Channel Capacity: 64
- RF Output Power: 1-50W
- Dimensions (H x W x D): 1.75 x 19 x 14.6 in (44 x 483 x 370mm)
- Weight: 19 lbs (8.6 kg)
- Input Voltage (AC): 100-240 Vac, 47-63Hz
+ Current (standby) 110/240V: 0.18/0.25A
+Current (transmitting) 110/240V: 1.5 / 0.9 A
- Input Voltage (DC) 11.0-14.4 Vdc
+Current (standby) 0.7 A
+Current (transmitting) 9.5 A
- Operating Temperature Range: -22 to +140 °F (-30 to +60 °C)
- Humidity: RH of 95%, non-condensing at 50 °C (122 °F)
- Max Duty Cycle: 100%
- Digital Vocoder Type: AMBE+2™
- Battery Charger Capacity: 12V, 3A
- Connectivity: Tx (N female), Rx (BNC female), USB A receptacle, 2x Ethernet
- Supported System Types: Digital Conventional, IP Site Connect, Capacity Plus, Linked Capacity Plus, Capacity Max, Connect Plus Analog Conventional, MPT 1327
RECEIVER
- Frequency Range: 403 - 470MHz
- Channel Spacing: 12.5 / 25* kHz
TRANSMITTER
- Frequency Range: 403 - 470MHz
- RF Output Power: 1-50W
Notes:
- Compatible with IPSC infrastructure
- Optional acessories: copyrights for single-point trunking (Capacity Plus), multi-point trunking (Linked Capacity Plus); Controller trunking
- Excluding acessories: Duplexer, Patch cable, antenna, connector, coaxial cable, etc.
