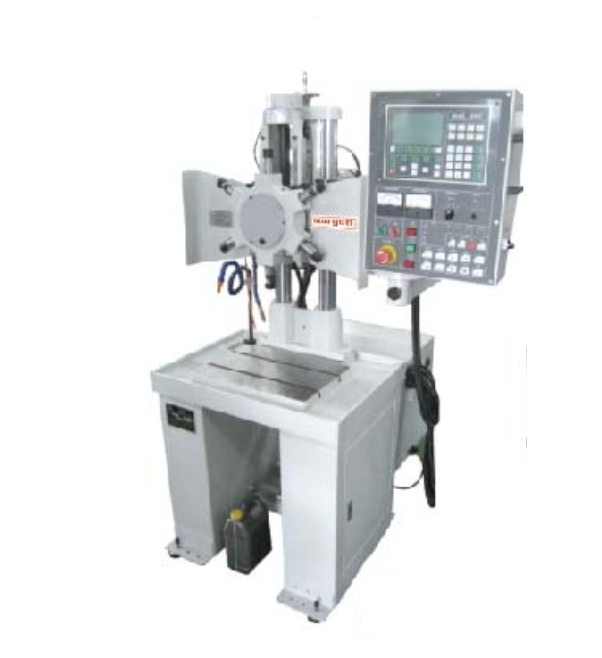

Morgon MTD-12A ເຄື່ອງເຈາະ CNC ປະເພດ Turret (12/14 mm)

Drilling / Tapping capacity:

- Mild steel: 12 mm / M12

- Cast iron: 14 mm / M14

Max. drilling depth: 150 mm

Cutting feedrate: 10000 mm/min

Spindle taper: Tr20 or TM 22 with ER20

Spindle motor: 2 speed 1.5/0.7 kw

Table size: 800 x 600 mm

Spindle nose to table surface top: 275~648 mm

Table head stroke: 370 mm

Net weight: 800 kgs
