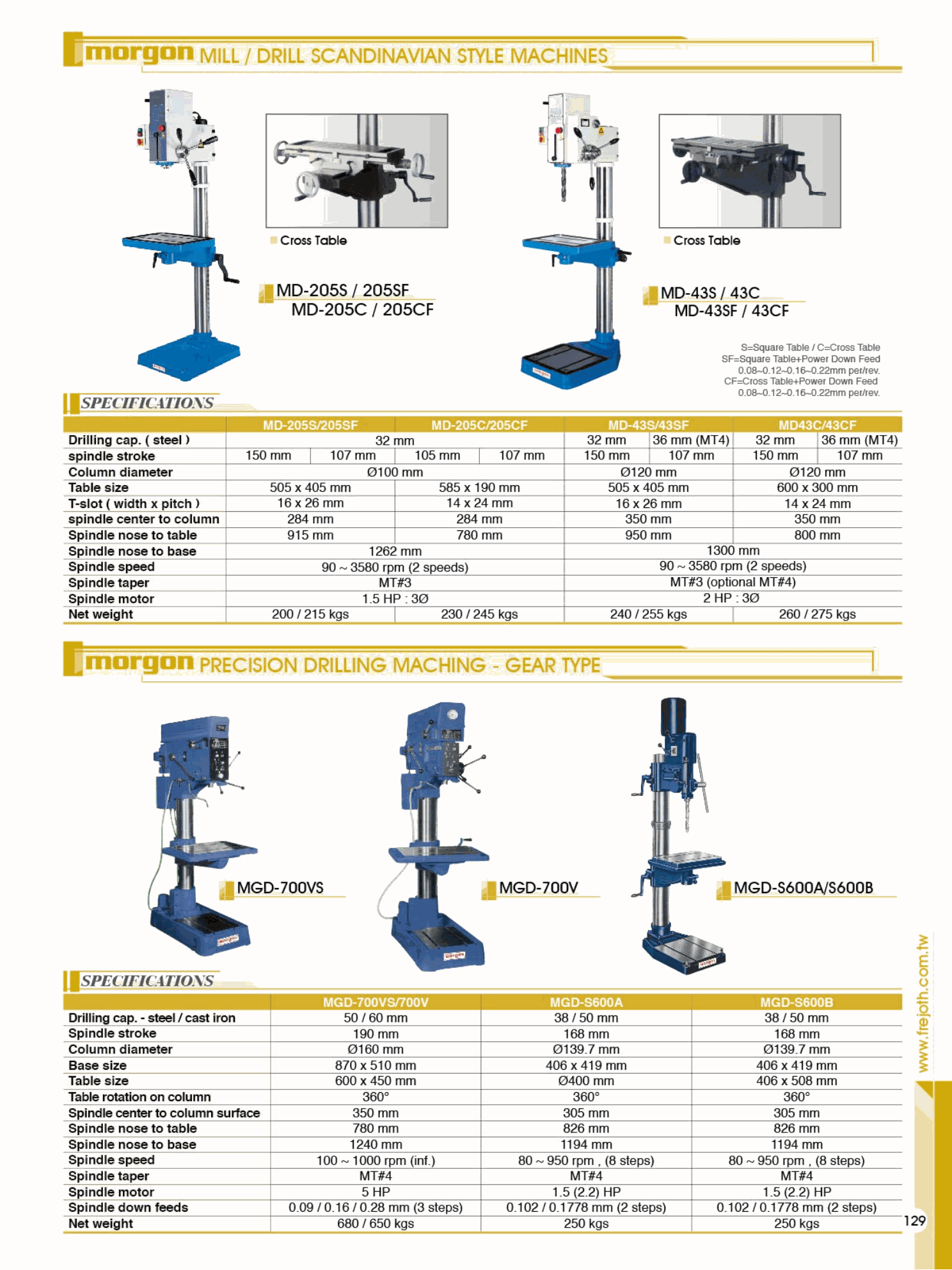

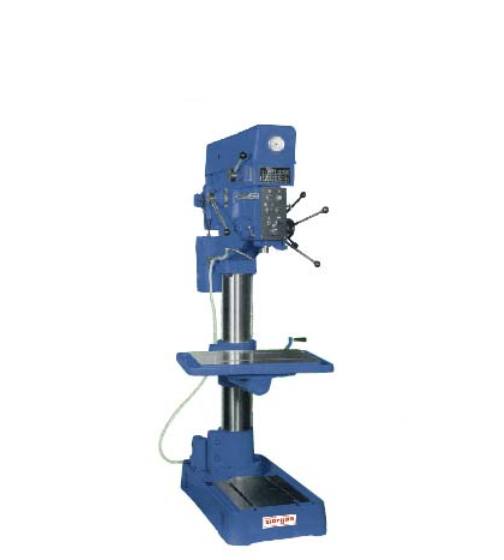

Morgon MGD-700V Precision Drilling Machining - ປະເພດເກຍ (50/60mm)

Drilling cap. - steel/cast iron: 50/60mm

Spindle troke: 190 mm

Column diameter: Ø160 mm

Base size: 870 x 510 mm

Table size: 600 x 450 mm

Table rotation on column: 360°

Spindle center to column surface: 350 mm

Spindle nose to table: 800 mm

Spindle nose to base: 1240 mm

Spindle speed: 100~1000 rpm (inf.)

Spindle taper: MT#4

Spindle motor: 5 HP

Spindle down feeds: 0.09 / 0.16 / 0.28 mm (3 steps)

Net weight: 650 kgs

Datasheet
