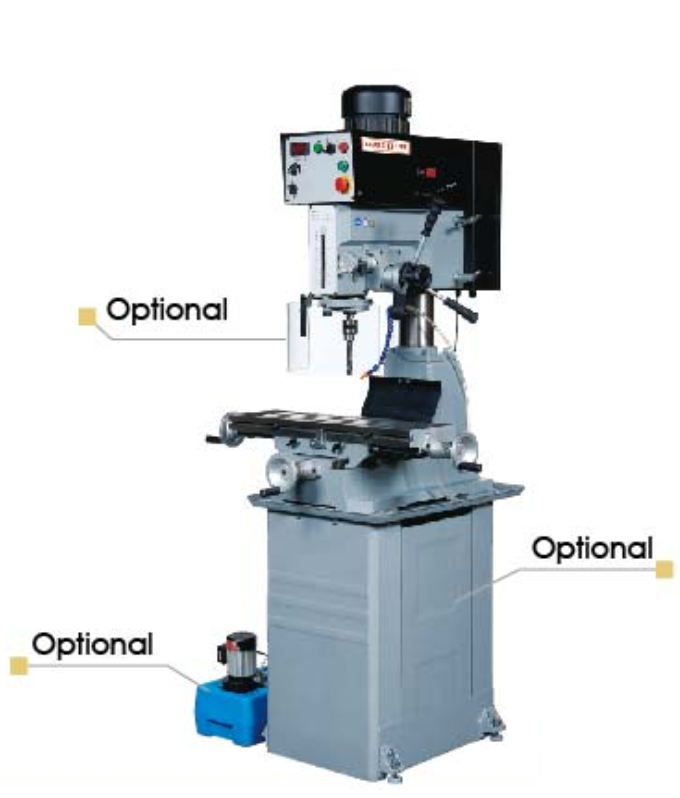

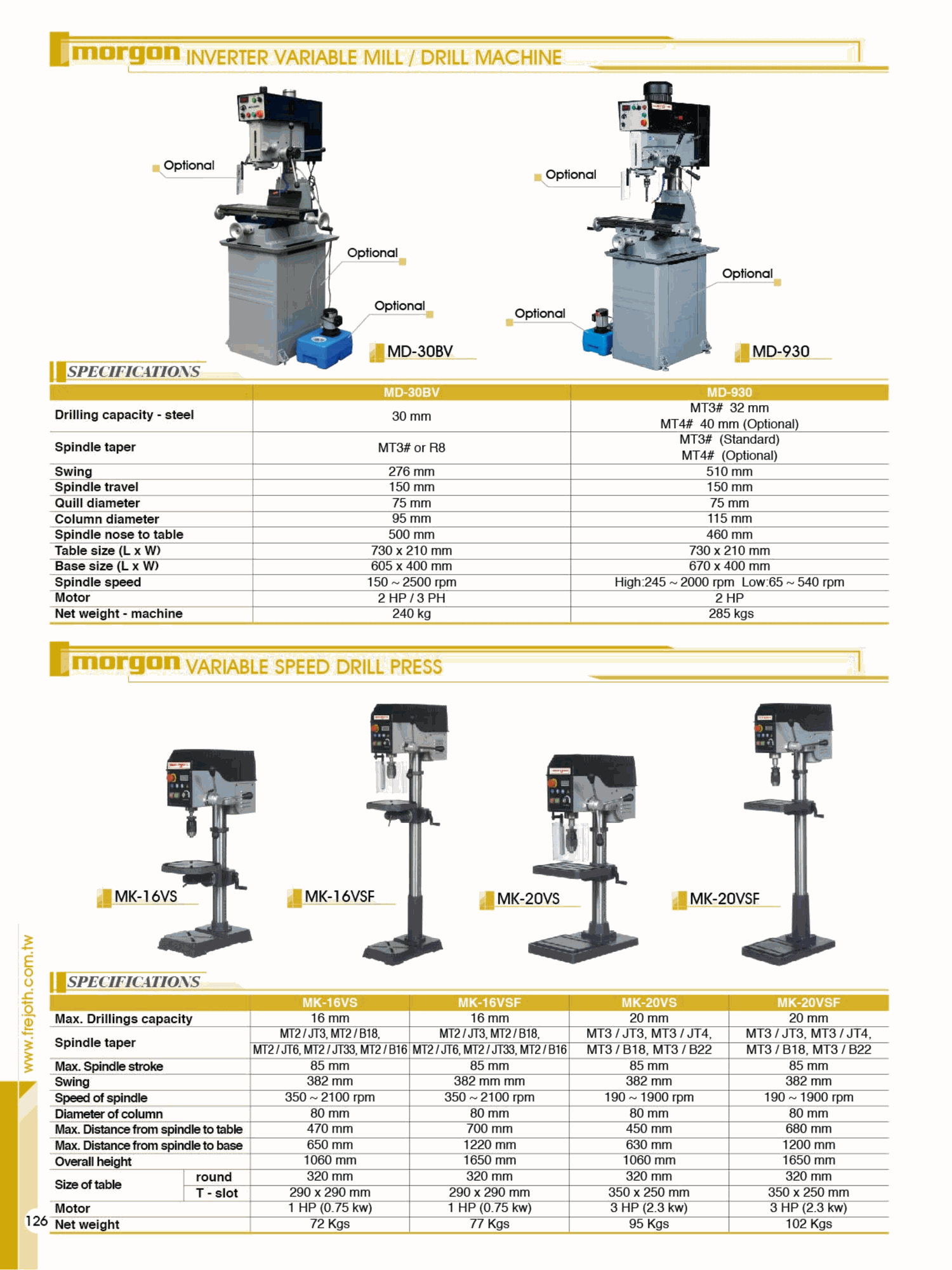

Morgon MD-930 ເຄື່ອງ Inverter ຕົວປ່ຽນແປງ / ເຄື່ອງເຈາະ (32 mm)

Drilling cap. - steel: MT3# 32 mm; MT4# 40 mm (Optional)

Spindle taper: MT3# (Standard); MT4# (Optional)

Swing: 510 mm

Spindle travel: 150 mm

Quill diameter: 75 mm

Column diameter: 115 mm

Spindle nose to table: 460 mm

Table size: 730 x 210 mm

Base size: 670 x 400 mm

Spindle speed: High: 245~ 2000 rpm; Low: 65 ~ 540 rpm

Motor: 2 HP

Net weight: 285 kgs
