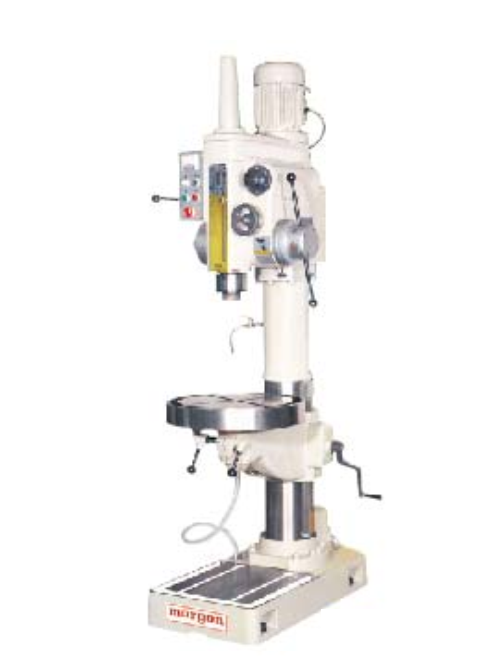

Morgon MD-650 ເຄື່ອງເຈາະ - ປະເພດຕັ້ງຊື່ (55/60 mm)

Swing: 650

Drilling / Tapping capacity

- Mild steel: 55 mm / M33

- Cast iorn: 60 mm / M40

Boring capacity mild steel / cast iron: 120 / 140 mm

Spindle stroke auto / manual: 200 / 230 mm

Auto feed number and range: No.6 - 0.05~0.40 mm/min

Spindle taper: MT#5

Spindle speed: 60 HZ - 64~1250 rpm

Spindle motor: 2.2 kW / 4P

Table size/ RD - SQ: 570 mm - 650 x 570 mm

Spindle nose to table surface top: 37~667 mm

Table vertical travels: 400 mm

Base: 540 x 1080 mm

Net weight: 900 kgs

Datasheet
