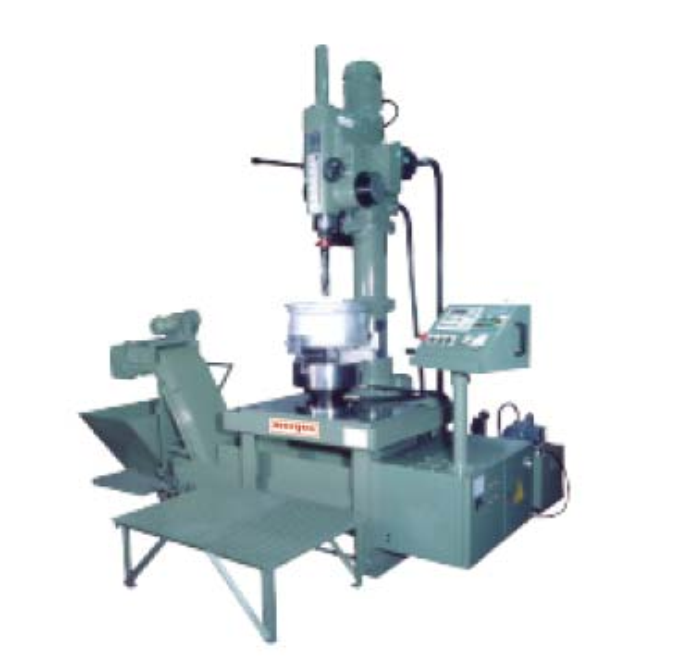

Morgon MD-650/1000 ເຄື່ອງເຈາະ CNC - ປະເພດຕັ້ງ (55/60 mm)

Drilling / Tapping capacity:

- Mild steel: 55 mm / M33

- Cast iron: 60 mm / M40

Boring capacity:

- Mild steel: 120 mm

- Cast iron: 140 mm

Drilling depth: 230 mm

Cutting rate: 10~4000 mm/min

Spindle taper: MT#5

Spindle motor: AC servo motor 4.4 kw

Table size: 1000 x 1000 mm

Spindle nose to table surface top: 430~805 mm

Net weight: 1500 kgs

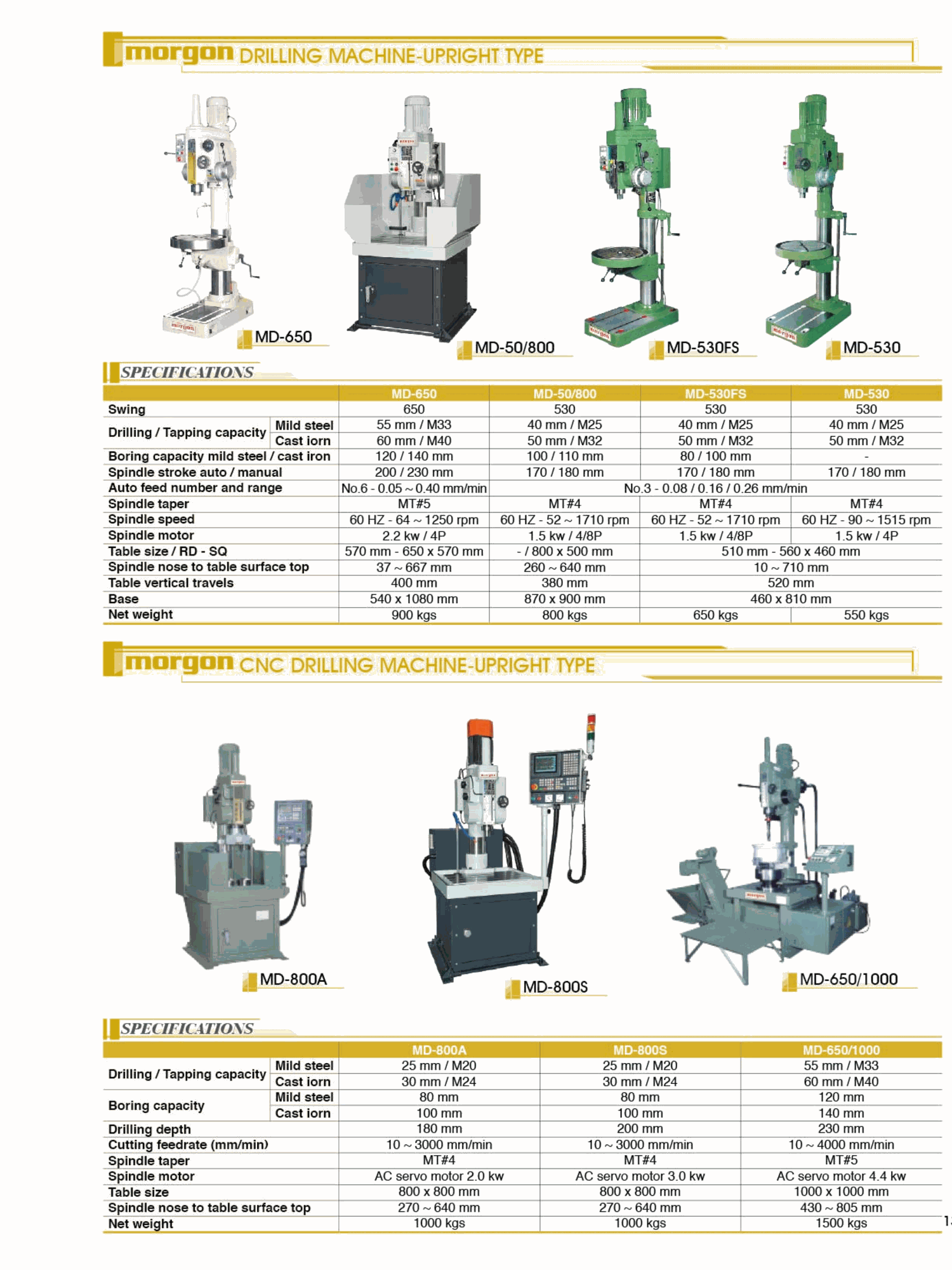

Datasheet
