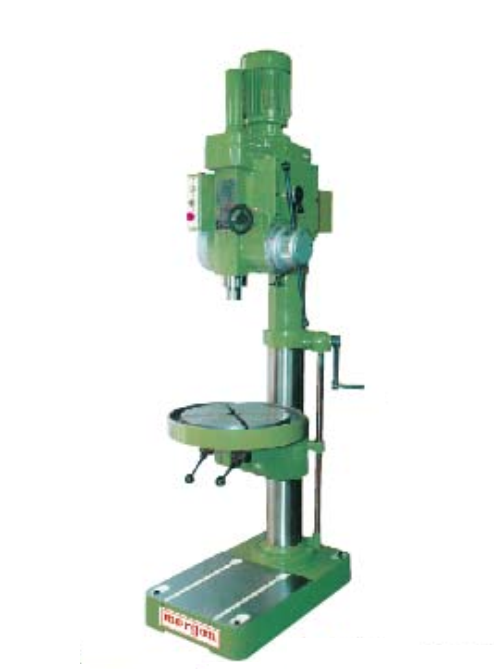

Morgon MD-530 ເຄື່ອງເຈາະ - ປະເພດຕັ້ງຊື່ (40/50 mm)

Swing: 530

Drilling / Tapping capacity

- Mild steel: 40 mm / M25

- Cast iorn: 50 mm / M32

Boring capacity mild steel / cast iron: -

Spindle stroke auto / manual: 170 / 180 mm

Auto feed number and range: No.3 - 0.08 / 0.16 / 0.26 mm/min

Spindle taper: MT#4

Spindle speed: 60 HZ- 90~1515 rpm

Spindle motor: 1.5 kw / 4P

Table size/ RD - SQ: 510 mm - 560 x 460 mm

Spindle nose to table surface top: 10~710 mm

Table vertical travels: 520 mm

Base: 460 x 810 mm

Net weight: 550 kgs
