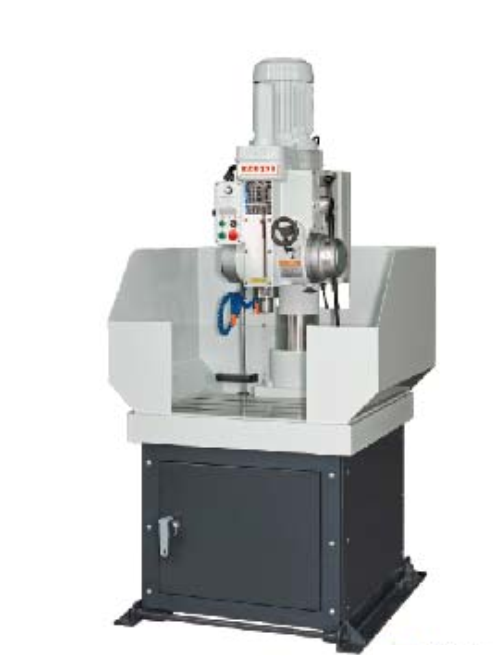

Morgon MD-50/800 ເຄື່ອງເຈາະ - ປະເພດຕັ້ງຊື່ (40/50 mm)

Swing: 530

Drilling / Tapping capacity

- Mild steel: 40 mm / M25

- Cast iron: 50 mm / M32

Boring capacity mild steel / cast iron: 100 / 110 mm

Spindle stroke auto / manual: 170 / 180 mm

Auto feed number and range: No.3 - 0.08 / 0.16 / 0.26 mm/min

Spindle taper: MT#4

Spindle speed: 60 HZ - 52~1710 rpm

Spindle motor: 1.5 kw / 4/8P

Table size/ RD - SQ: - / 800 x 500 mm

Spindle nose to table surface top: 260~640 mm

Table vertical travels: 380 mm

Base: 870 x 900 mm

Net weight: 800 kgs
