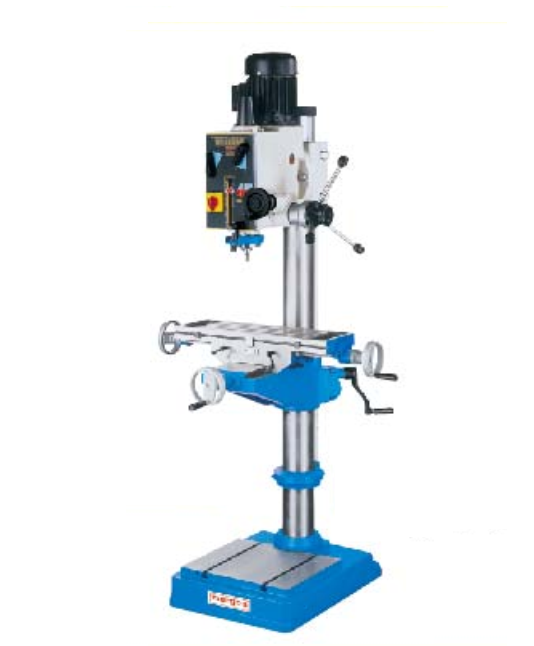

Morgon MD-40HS ເຄື່ອງຈັກ / ເຄື່ອງເຈາະຫົວເກຍ (40/100/20 mm)

Drilling /face mill / end mill cap. ( steel ): 40/100/20 mm

Tapping cap. ( optional ): 20 mm

Spindle stroke: 130 mm

Column diameter: Ø115 mm

Table size: 585 x 190 mm (cross)/555 x 495 mm (square)

T-slot ( width x pitch ): 14 x 24 (16 x 26) mm

Spindle speed: 65~1550 rpm (6 steps)

Spindle speed ( optional ): 65~3100 rpm (12 steps)

Spindle taper: MT#3 or R8

Spindle motor: 1 HP : 3Ø / 1.5 HP: 1Ø

Net weight: 270 kgs
