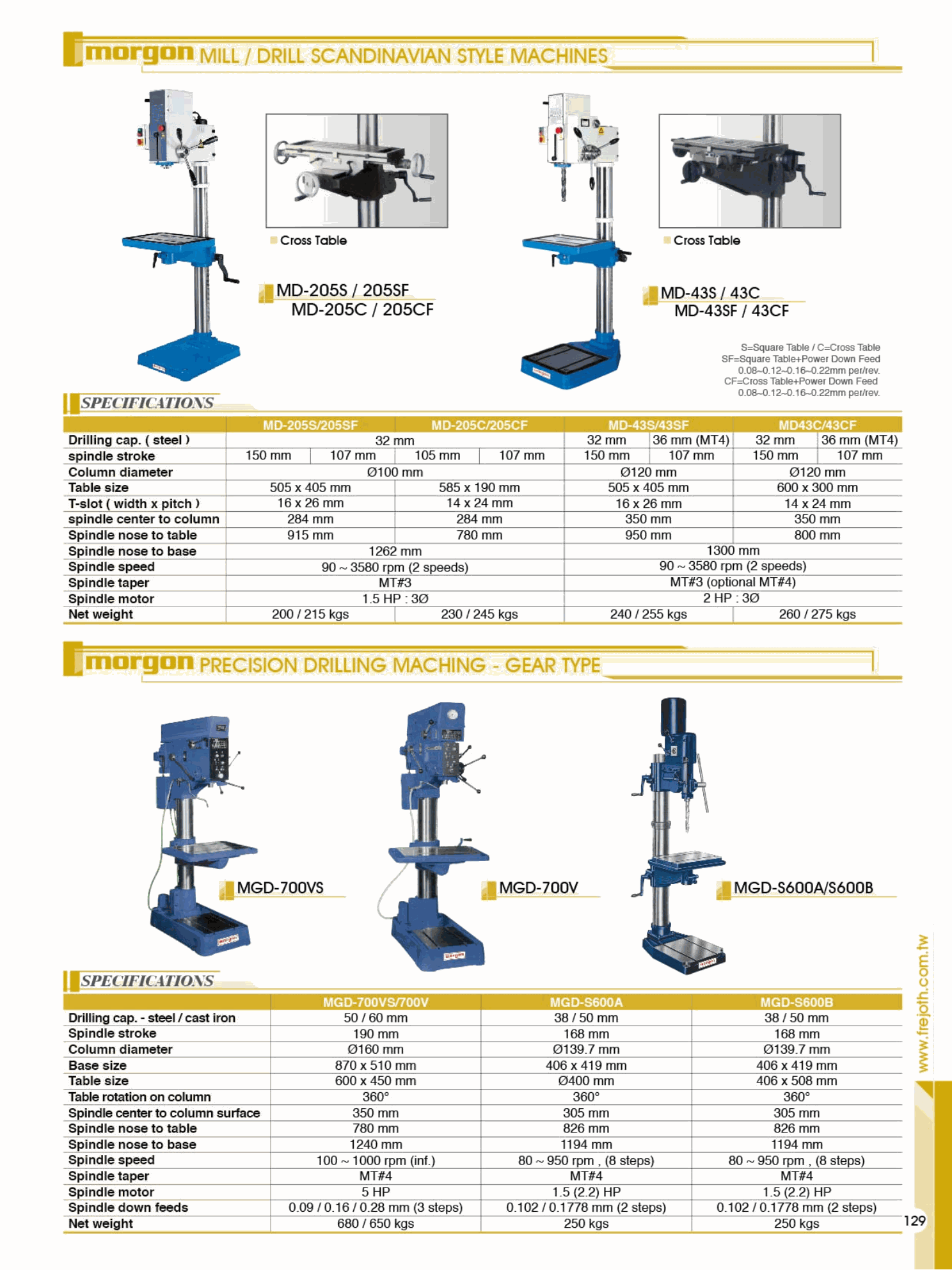

Morgon MD-205S ເຄື່ອງຈັກ/ເຄື່ອງເຈາະແບບ Scandinavian (32 mm)

Drilling cap. - steel: 32 mm

Spindle troke: 150 mm

Column diameter: Ø100 mm

Table size: 505 x 405 mm

T-slot (width x pitch): 16 x 26 mm

Spindle center to column: 284 mm

Spindle nose to table: 915 mm

Spindle nose to base: 1262mm

Spindle speed: 90~3580 rpm (2 speeds)

Spindle taper: MT#3

Spindle motor: 1.5 HP : 3Ø

Net weight: 200 kgs
