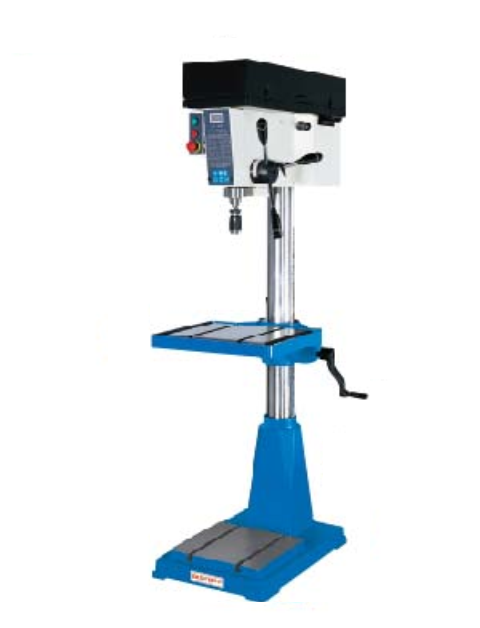

Morgon MD-19V ເຄື່ອງຈັກປະເພດສາຍແອວ / ເຄື່ອງເຈາະ (28 mm)

Drilling /face mill / end mill cap. ( steel ): 28 mm

Tapping cap. ( optional ): 16 mm

Longitudinal travel: -

Cross travel: -

Spindle stroke: 120 mm

Column diameter: Ø100 mm

Table size: cross: 420 x 470 mm

T-slot ( width x pitch ): 14 x 24 mm

Spindle speed: Low: 0~385 rpm; High: 385~2000rpm

Spindle taper: MT#3

Spindle motor: 1 HP

Net weight: 200 kgs

Datasheet
