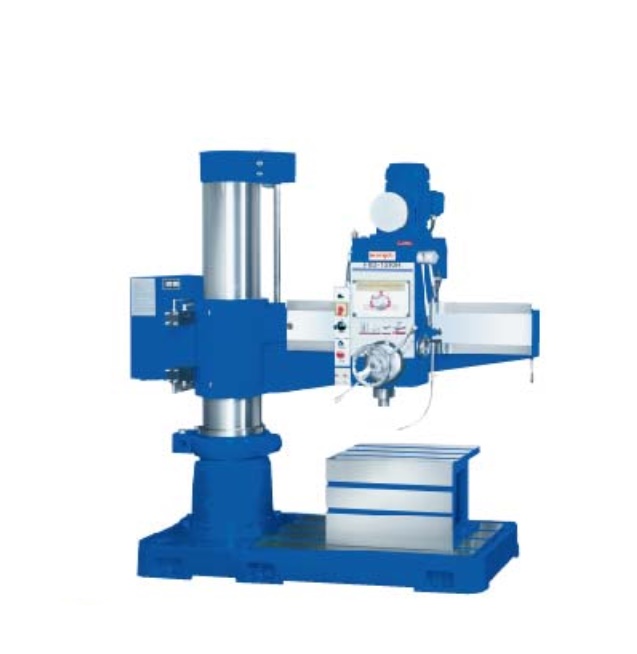

Morgon FRD-1280H ເຄື່ອງເຈາະ radial (50/60 mm)

Drilling cap. - steel / cast iron: 50/60 mm

Tapping cap. - steel / cast iron: M30 / M38

Boring cap. - steel / cast iron: 85 / 120 mm

Spindle stroke: 250 mm

Horizontal travel of headstock: 920 mm

Column diameter: Ø300 mm

Base size: 1800 x 800 x 170 mm

Table size: 650 x 500 x 410 mm

Spindle center to column surface: min. 330 mm/max. 1250 mm

Spindle nose to base: min. 290 mm/max. 1210 mm

Spindle speed: 44 ~ 1500 rpm , (12 steps)

Spindle taper: MT#4

Spindle motor: 3 HP (4P/8P)

Net weight: 2050 kgs

Datasheet
