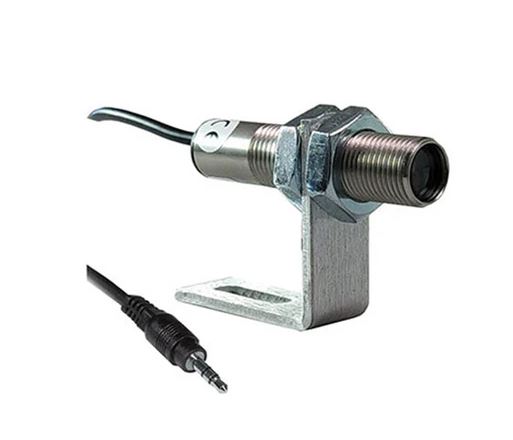

Monarch Instrument ROS-P-25 ROS - ເຊັນເຊີ LED Optical ໄລຍະໄກ

Remote Optical LED Sensor with 25 ft. cable with 1/8 inch

-Speed Range 1-250,000 RPM

-Illumination Visible red LED

-On-Target Indicator Green LED on the wire end cap

-Operating Range up to 36 in. [0.9 m] and 45° offset from the target

-Operating Temperature 14 °F to 158 °F (-10 °C to 70 °C)

-Power Required 3.0 to 15 V dc @ 40 mA

-Output Signal Negative pulse input voltage (+V) to 0

-Humidity Maximum relative humidity 80% for temperature up to 88 °F (31 °C) decreasing linearly to 50% relative humidity at 104 °F (40 °C)
