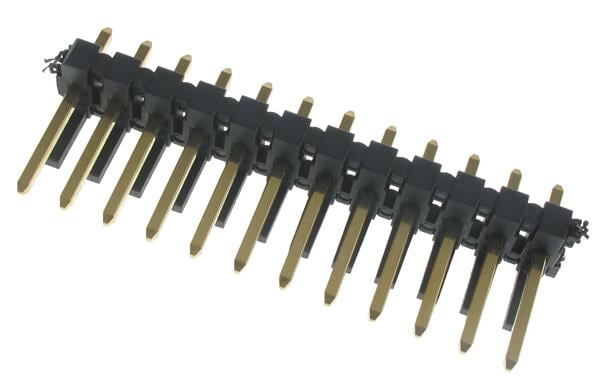

Molex 26-48-2123 Breakaway HDR VT 1X12P .156 450/172

Pitch: 3.96 mm (0.156 in)

Application: Wire-to-Board, Power

Unit Weight: 4.290 g

Housing Color: Black

Latching Type: Unlatched

Contact Gender: Pin (Male)

Current Rating: 4 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 1 Row

Voltage Rating: 250 V

Contact Plating: Gold

Contact Material: Brass

Housing Material: Polyester

Termination Style: Solder Pin

Mating Post Length: 11.43 mm (0.45 in)

Flammability Rating: UL 94 V-0

Number of Positions: 12 Position

Termination Post Length: 4.37 mm (0.172 in)

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C
