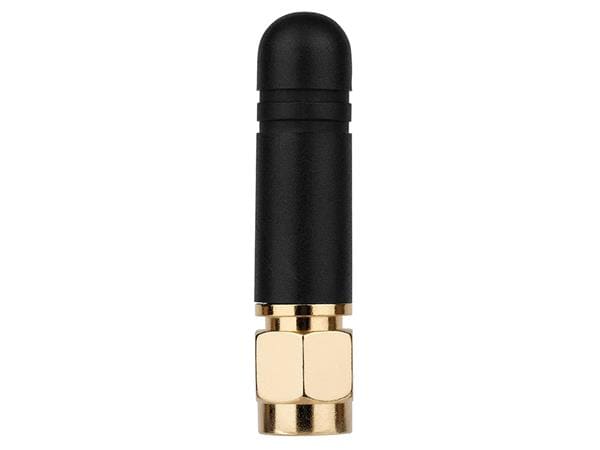

Molex 215872-0001 ອະນຕີນາພາສິບ MINI-LINK WI-FI TRI-BAND ANTENNA STR

Gain: 3.4 dBi, 4.5 dBi, 6 dBi

Style: Stubby

Length: 35 mm

Diameter: 8 mm

Polarization: Linear

REACH - SVHC: Details

Mounting Style: Panel Mount

Number of Bands: 3 Band

Center Frequency: 2.45 GHz, 5.5 GHz, 6.5 GHz

Mechanical Style: Whip

Maximum Frequency: 7.125 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 5G, Cellular (NBIoT, LTE), DSRC

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
