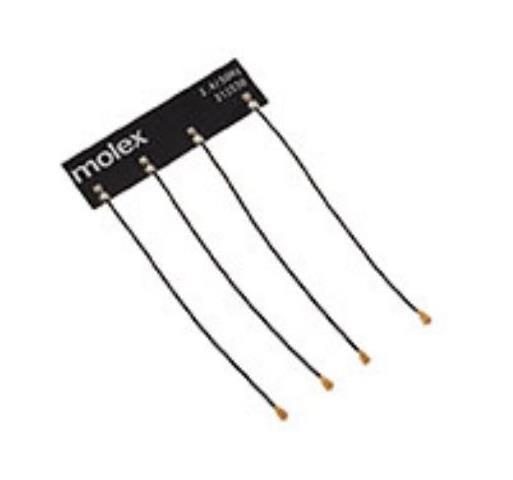

Molex 212330-0200 MIMO 200mm 2.4/5GHz MIMO 4x4 ອັນເທນນາຍຍືນຍົງ

Gain: 2.4 dBi, 3.3 dBi, 2.6 dBi, 2.3 dBi, 3 dBi, 3.4 dBi, 3.5 dBi, 3.9 dBi

Style: T-Bar Flex

Width: 20 mm

Height: 0.1 mm

Length: 70 mm

Impedance: 50 Ohms

Cable Type: 200 mm Coax

Unit Weight: 3.575 g

Cable Length: 200 m

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: MIMO

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.5 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 5.85 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: IPEX MHF

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
