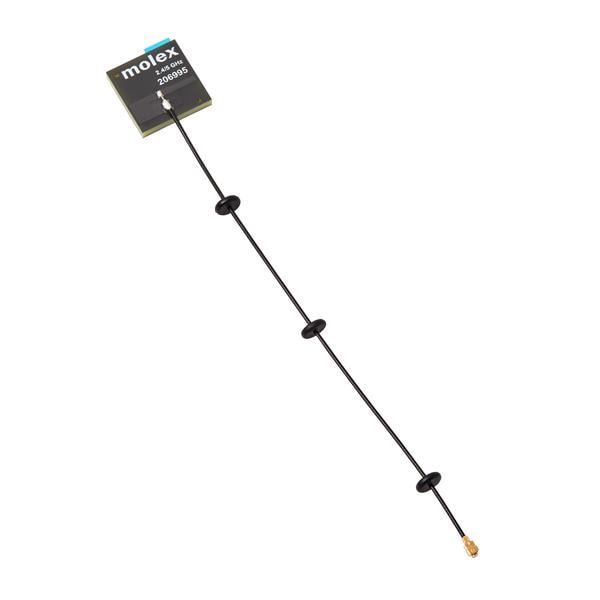

Molex 206995-0150 ເຄື່ອງຮັບສະຫນາມອັດຕະໂນມັດ 2.4/5GHz ອະນເທນາ PCB ຢູ່ບໍ່ເຫຼັ້ມເຫຼືອງແລ້ວ 150mm

Gain: 2.6 dBi, 3.4 dBi

Style: T-Pad Flex

Width: 20.5 mm

Height: 3 mm

Length: 20.5 mm

Cable Type: 150 mm Coax

Unit Weight: 3.348 g

Cable Length: 150 mm

Polarization: Linear

Mounting Style: Adhesive Mount

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.5 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 5.85 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, RFID, U-NII

Antenna Connector Type: IPEX MHF

Protocol - WiFi - 802.11: 802.11, LoRaWAN, SigFox, WiFi, WLAN

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
