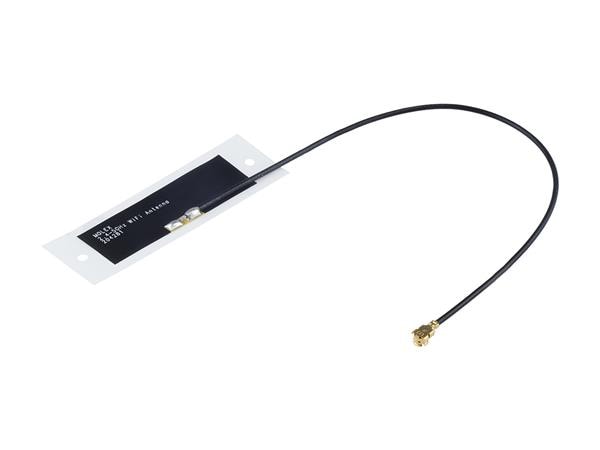

Molex 204281-0150 ແນວຮັບສະສົມສະຫນາມ 2.4-5GHz WF ANT EDGE-FED CABLE 150MM

Gain: 1.8 dBi, 3.1 dBi

Style: I-Bar Flex

Width: 11 mm

Height: 0.1 mm

Length: 35 mm

Impedance: 50 Ohms

Cable Type: 150 mm Coax

Technology: WiFi

Unit Weight: 818 mg

Cable Length: 150 mm

For Use With: Home Automation, Connected Vehicle, Custom Solutions

Polarization: Linear

Power Rating: 2 W

REACH - SVHC: Details

Mounting Style: Adhesive Mount

Number of Bands: 2 Band

Center Frequency: 2.45 GHz, 5.5 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 5.85 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: IPEX MHF

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
