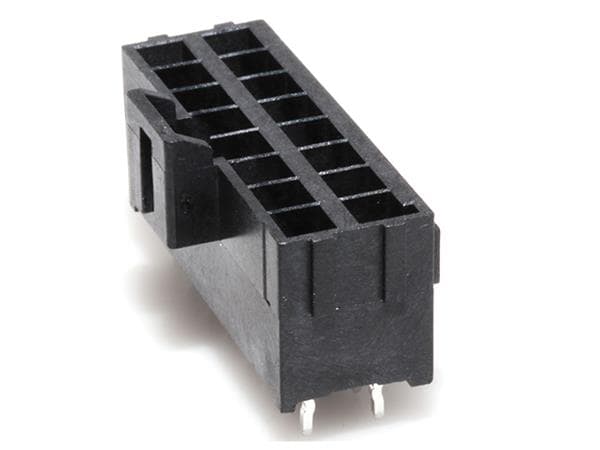

Molex 172298-1216 Power ULTRAFIT 3.5MM 16CKT HDR VT D/R K BLK15AU

Pitch: 3.5 mm (0.138 in)

Application: Wire-to-Board, Power

Row Spacing: 4.6 mm (0.181 in)

Unit Weight: 3.634 g

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 11 A

Mounting Angle: Straight

Mounting Style: Kinked Pin

Number of Rows: 2 Row

Voltage Rating: 400 VAC/DC

Contact Plating: Gold

Contact Material: Tin

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: Solder Pin

Flammability Rating: UL 94 V-0

Number of Positions: 16 Position

Termination Post Length: 3.2 mm (0.126 in)

Maximum Operating Temperature: + 120 C

Minimum Operating Temperature: - 40 C
