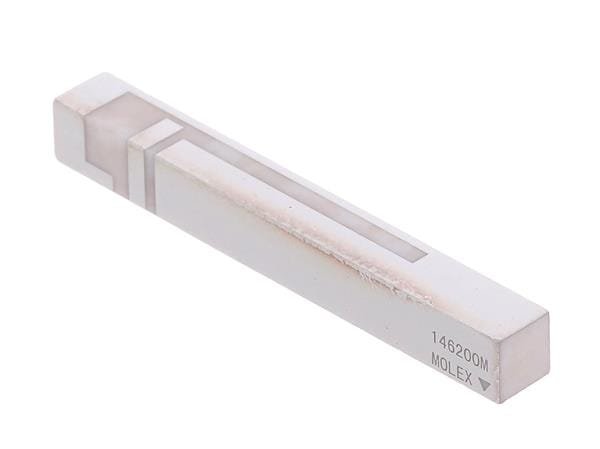

Molex 146200-0011 Passive Antenna Cellular LTE Ceramic SMT 698MHz-2.7GHz

Gain: 3.7 dBi

Style: Ceramic

Width: 5 mm

Height: 5 mm

Length: 40 mm

Impedance: 50 Ohms

Technology: Cellular LTE

Unit Weight: 3.812 g

Polarization: Linear

Mounting Style: PCB Mount

Number of Bands: 1 Band

Center Frequency: 748 MHz, 824 MHz, 815 MHz, 829 MHz, 898 MHz, 915 MHz, 928 MHz, 1850 MHz, 2170 MHz, 2450 MHz, 2690 MHz

Mechanical Style: Chip

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: SMD/SMT

Protocol - Sub GHz: IoT, ISM

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
