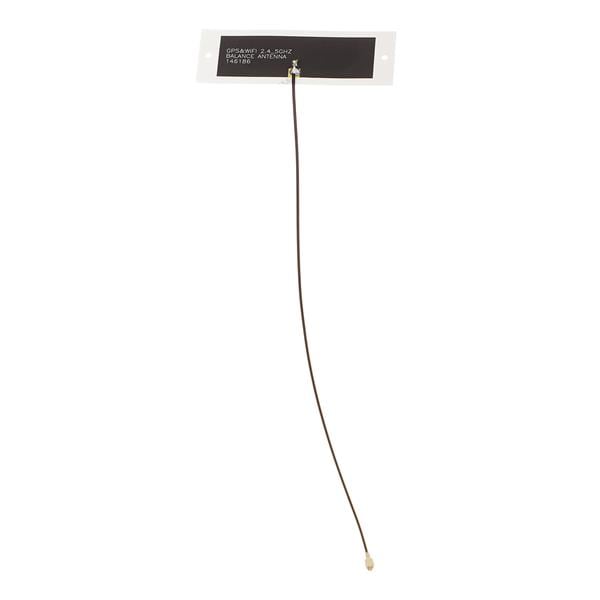

Molex 146186-0200 ເຄື່ອງຮັບສະຫນາມອັງກິດ GPS & WIFI Flex Ant 200mm assy

Gain: 4.2 dBi

Style: T-Bar Flex

Width: 18 mm

Height: 0.1 mm

Length: 53 mm

Impedance: 50 Ohms

Cable Type: 200 mm Coax

Unit Weight: 1 g

Cable Length: 200 m

Polarization: Linear

Mounting Style: Adhesive Mount

Number of Bands: 5 Band

Center Frequency: 1575.42 MHz, 1602 MHz, 2483.5 MHz, 2400 MHz, 5850 MHz, 5150 MHz, 4500 MHz

Mechanical Style: PCB Trace

Maximum Frequency: 6 GHz

Minimum Frequency: 1.57542 GHz

Termination Style: Connector

Protocol - Sub GHz: ISM, U-NII

Antenna Connector Type: IPEX MHF

Protocol - GPS, GLONASS: GLONASS, GPS

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
