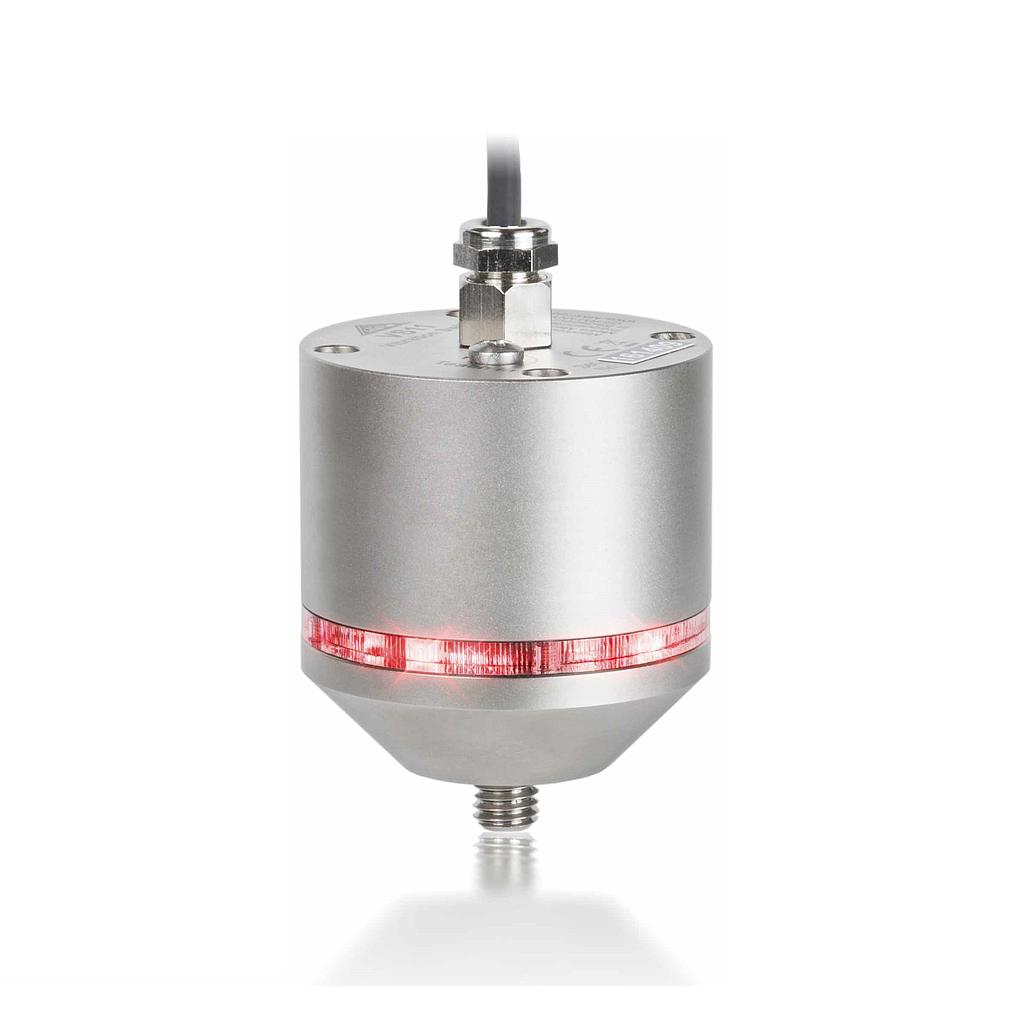

MMF VS11 ສະວິດການສັ່ນສະເທືອນ/USB Transmitter (0.1~1000 m/s²)
RMS/peak monitoring: Yes
Monitoring in frequency domain (FFT): Yes
LEDs for warning and alarm: Green/red
External USB connector: no
Measuring range: Acceleration: 0.1 - 1000 m/s²; velocity: frequency dependent
Filters for RMS / peak acceleration:
High pass: 0.1/2/5/10/20/50/100/200/500/1000 Hz;
Low pass: 0.1/0.2/0.5/1/2/5/10 kHz
Filters for RMS / peak velocity: High pass: 2/5/10 Hz; Low pass: 1 kHz
FFT frequency range and resolution: 2 to1000 or 20 to 10 000 Hz; 360 lines
Relay output: PhotoMOS relay; SPST; max. 60 V / 0.5 A (AC/DC); close or break function programmable
Interface: USB 2.0 full speed for parametrization and measurement; CDC mode/virtual COM port
USB connection: Internal micro USB socket
Power supply: USB or 5 to 30 V DC; < 100 mA
Protection grade: IP67
Operating temperature range: -40 .. 80°C (-40 .. 176°F)
Dimensions (Ø x height): 50 mm x 52 mm
Attachment: M8 stud; 8 mm long; coupling face: Ø 25 mm
Weight: 160 g (5.6 oz)
Optional accessories: Micro USB cable for programming VS1x-USB
