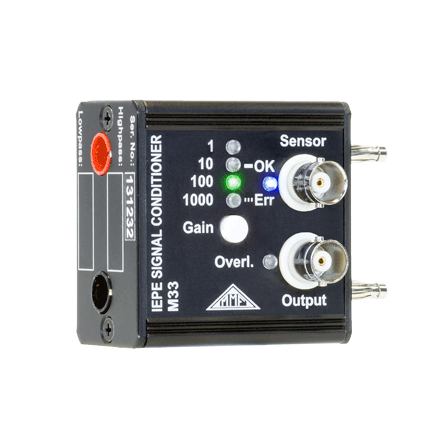

Input: BNC; IEPE constant current source 3.5 .. 4.5 mA, bias voltage >24 V
Output: BNC; DC coupled, impedance 300Ω
Gain: 1 / 10 / 100 / 1000; ±0,5 %
Noise at output:
(0.3 Hz to 40 kHz)
Gain 1: -100 dBV
Gain 10: -80 dBV
Gain 100: - 70 dBV
Gain 1000: -50 dBV
Frequency range (-3 dB): 0.2 Hz to 30 kHz (with FB2-30 kHz)
High pass filter modules: FB3-3/5/10/30/50/100/300/500/1000 Hz; Butterworth 2 poles
Low pass filter modules: FB2-0.1/0.3/0.5/1/3/5/10/30 kHz; Butterworth 4 poles
Integrator modules: Single integrator FBV: 3 to 10000 Hz; double integrator FBD: 5 to 1000 Hz
Output swing voltage: ± 10 V
Overload indication: LED; at >10V peak at output and filter input
Power supply: 5 to 28 VDC; 170 to 25 mA; isolated from signal path; via coaxial power
jack DIN 45323 (positive at inner contact) or 4 mm banana plug
Case: Aluminum
Supplied accessories: 2 screw-in banana plugs for power supply connection to next module
Optional accessories: PS1600: mains plug adapter for 100 to 240 VAC; 12 VDC/1600 mA
for up to 5 units M33
M29+33DIN: 35 mm DIN rail adapter
Operating temperature: -40 to 55 °C; 95 % rel. humidity; co condensation
Weight: 130 g
Dimensions (W x H x D): 54 mm x 55 mm x 45 mm
