Output : IEPE
Sensitivity: 100mV/g
Measuring range: ±60 g
Linear frequency range (±3 dB): 22000 Hz
Socket UNF 10-32, axial
Weight: 11.2 g
Sensor with accessories kit including cable 009-UNF-UNF-1,5, adapter 017, mounting stud 003, adhesive
wax 002, probe 001, magnetic base 008, instruction manual, data sheet

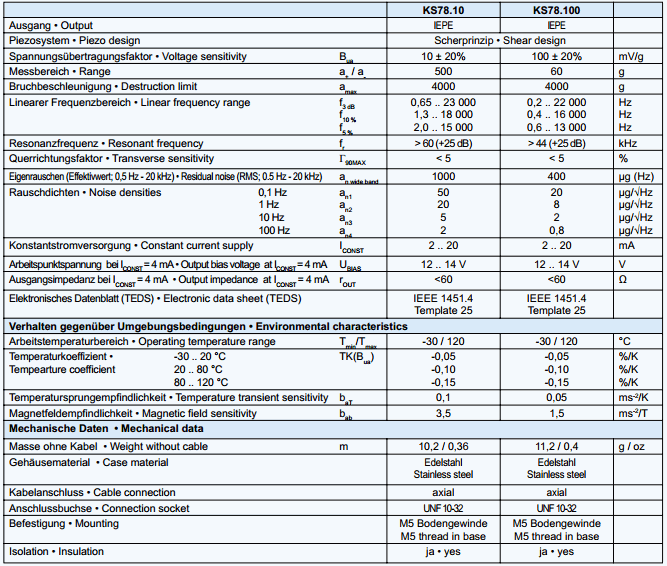

Datasheet
Option
Connection accessories
• 009-UNF-UNF-1,5: cable UNF 10-32 / UNF 10-32; 1.5 m
• 009-UNF-BNC-1,5: cable UNF 10-32 / BNC; 1.5 m
• 010-UNF-BNC-5/10: cable UNF 10-32 / BNC; 5 / 10 m
• 016: Coupler for 2 UNF 10-32 plugs
• 017: Adapter UNF 10-32 / BNC (male)
• 117: Adapter UNF 10-32 / BNC (female)
• 025: Adapter UNF 10-32 / TNC (male)
Mounting accessories:
• 002: Adhesive wax
• 003: Mounting stud M5
• 045: Thread adapter M5 / UNF 10-32
• 046: Thread adapter M5 / 1/4"-28
• 008: Rare-earth magnetic base M5
• 029: Adhesive pad M5
• 030: Triaxial mounting cube M5
