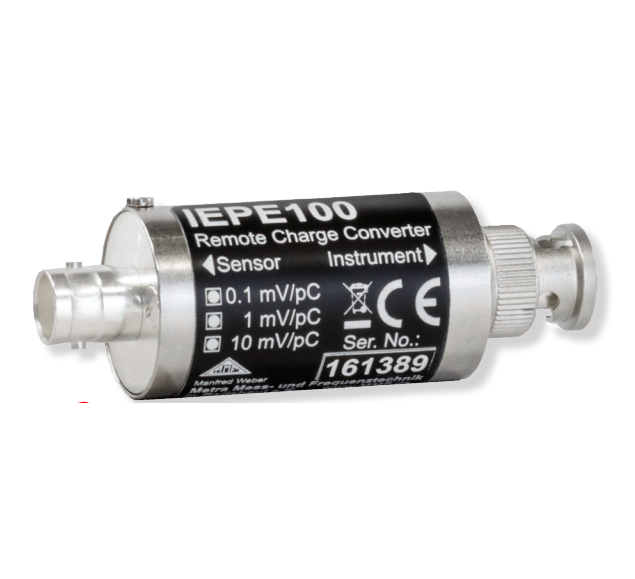

MMF IEPE100 ຕົວແປງຄ່າທາງໄກ (0,1~10mV/pC, ± 500~50000pC)
Gain: 0,1 mV/pC; 1 mV/pC; 10 mV/pC; selectable by internal DIP switches
Accuracy: <±3%
Measuring ranges:
0,1 mV/pC: ± 50000 pC
1 mV/pC: ± 5000 pC
10 mV/pC: ± 500 pC
Input: Charge input, single ended, connected to signal ground, BNC socket (female)
Overvoltage resistance at input: 50V impulse
Output: IEPE compatible, voltage, single ended, connected to signal ground, BNC plug (male)
Linear output voltage range: ±5V
Output impedance: < 100 Ω
IEPE supply: Constant current 4 .. 20 mA, compliance voltage > 20V
Frequency range:
0,6Hz - 23kHz (-5%)
0,3Hz - 33kHz (-10%)
0,2Hz - 65kHz (- 3dB)
Operating temperature range: -20..80°C; -4..176°F
Case material: Brass, nickel plated
Mounting: With cable harness clamp or plug into BNC input socket of instrument
Dimensions: 1.7 in x 0.95 in (length x diameter), without sockets
Weight: 55 g (2 oz)
