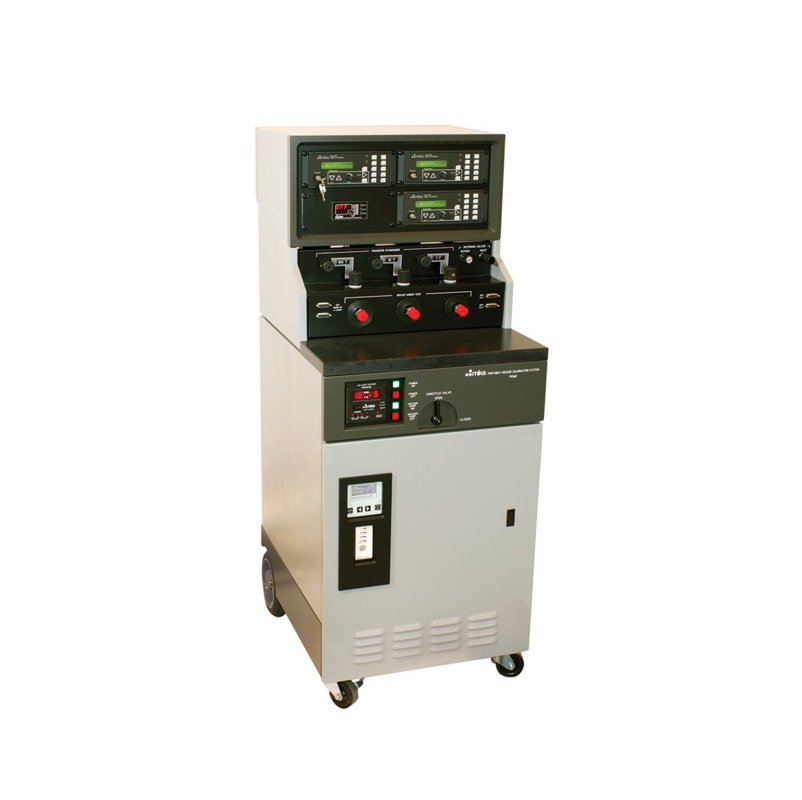

MKS PVS6F ລະບົບການປັບສູນຍາກາດແບບພົກພາ (10^5~1000 mmHg)
Transfer Standard: AA06A absolute sensors (NIST traceable)
Accuracy: 0.08% of Reading (± temp. coefficients) Optional 0.05% of Reading (± temp. coefficients) for 1, 10, 100, or 1000 mmHg Full Scale
Resolution: 1 x 10-6
Fitting Type: Test Gas Inlet: 0.25 in. Swagelok® bulkhead
Test Port (3): Swagelok 8 VCR® male (3)
Operating Temperature: 15-40°C
Readout: MKS 670, 5½-digit LCD (one per standard); Unit under test readout electronics: PDR2000
Power Requirements: 110 VAC, 60 Hz; 220 VAC, 50 Hz; 15 Amps
Weight: Approximately 250 lbs (110 kg)
Pressure Control: Manual needle valve to control gas inlet; manual isolation valve and metering bypass valve for pressure throttle control
Compliance: CE
High Vacuum Gauge: IMAG ionization gauge and controller provides 1 x 10-3 to 1 x 10-9 mmHg measurement
Standby Power: 500 V.A. uninterruptible power supply keeps three Transfer Standards warmed up and ready to use for up to 60 min.
Test/Calibration: 5-10 psig dry filtered N2
Vacuum Pumping System:
Mechanical Pump: Oil free 4 stage diaphragm pump operated as dual two stage diaphragm pumps
High Vacuum Pump: Hybrid turbo/drag air-cooled
Normal Base Pressure: <5 x 10-7 mmHg
For specific range please check the attachment below!
