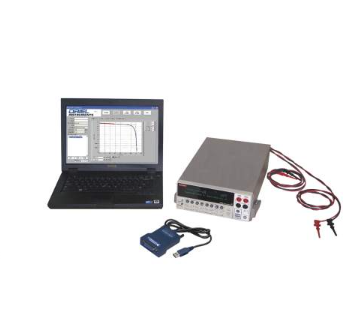

MKS PVIV-1A IV ສະຖານີທົດສອບ (1 Amp Max, Software and Meter Included)

Current Range: ±1µA - 1A

Current Accuracy: <0.23% across all ranges

Current Resolution: 10pA - 10µA

Voltage Range: ±200mV - 200V

Voltage Accuracy: ±0.02%

Voltage Resolution: 1µV - 1mV

Output Power: 20 W

Disk Space: 600 MB minimum required

Duration of IV Measurement: 0.6 - 58 sec w/ 0.5 sec pre-sweep delay

Number of Measurement Points: 2 - 1000

Communication Interface: GPIB-USB

Thermistor Temperature Accuracy: ±0.25°C @ 25°C

Operating System: Windows XP™, Service pack 2 or 3; Windows 7 or 10, 32-bit or 64-bit

Electrical Interface: 4-wire probing, 4 quadrant sourcing and sinking

Software: LabView 2009 SP1 GUI

Memory: 512 MB available RAM required
