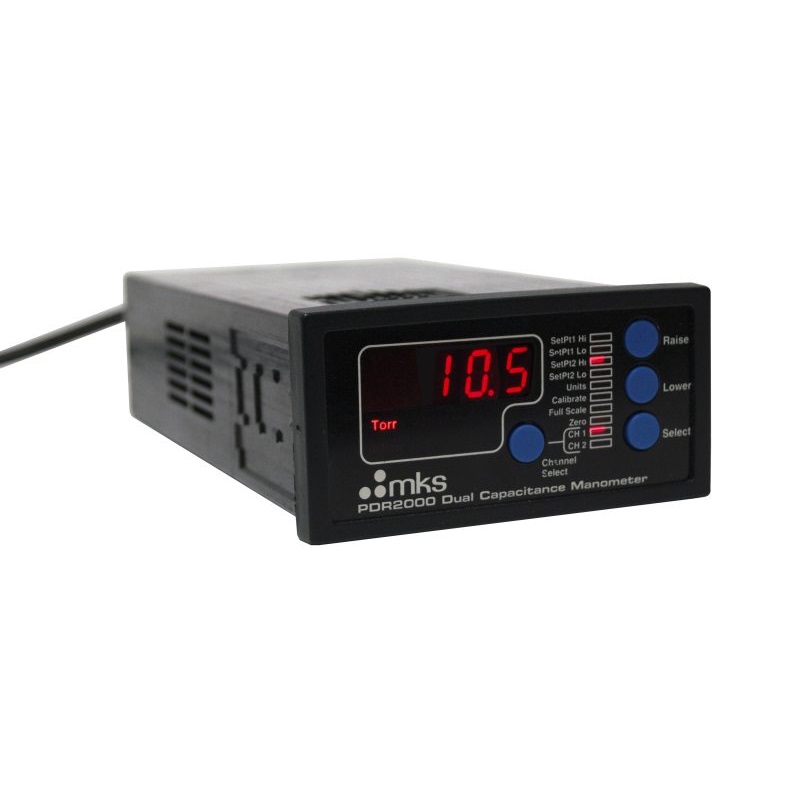

MKS PDR2000A ການສະຫນອງພະລັງງານດິຈິຕອນສອງຊ່ອງແລະອ່ານອອກ (RS232; ±15VDC; 0.75Amp)
Display: Digital, 4-place Red LED
Display Units: Torr/mTorr, or mbar/microbar
Number of Channels: 2
Power Requirements: 110-240 VAC; 47-63 Hz, 40 VA
Input Signal: 0 to 10 VDC
Output Power: ±15 VDC @ 750 mA
Output Signal: Linear, 4 VDC for Full Scale output, (0.5 VDC per decade), 0-10 VDC each transducer
Communication Protocol: RS-232 (9600 baud, 8 data bits, no parity, 1 stop bit)
Trip Points; 2 fully programmable trip points
Trip Point Relay Ratings: 2 Amps @ 30 VDC
For Use With: MKS Instruments type 628 (one only), 622, 623, 624, 627, 722, 750, 850, 852, 870, 872, 223 (unidirectional only) capacitance manometers
Operating Temperature: 2° - 50°C
Weight: 1 lb
Dimensions: 94 mm x 47 mm x 165 mm
Mounting: 1/8 inch DIN enclosure
Compliance: EMC Directive 2014/30/EC, RoHS Directive 2011/65/U
For specific range please check the attachment below!
