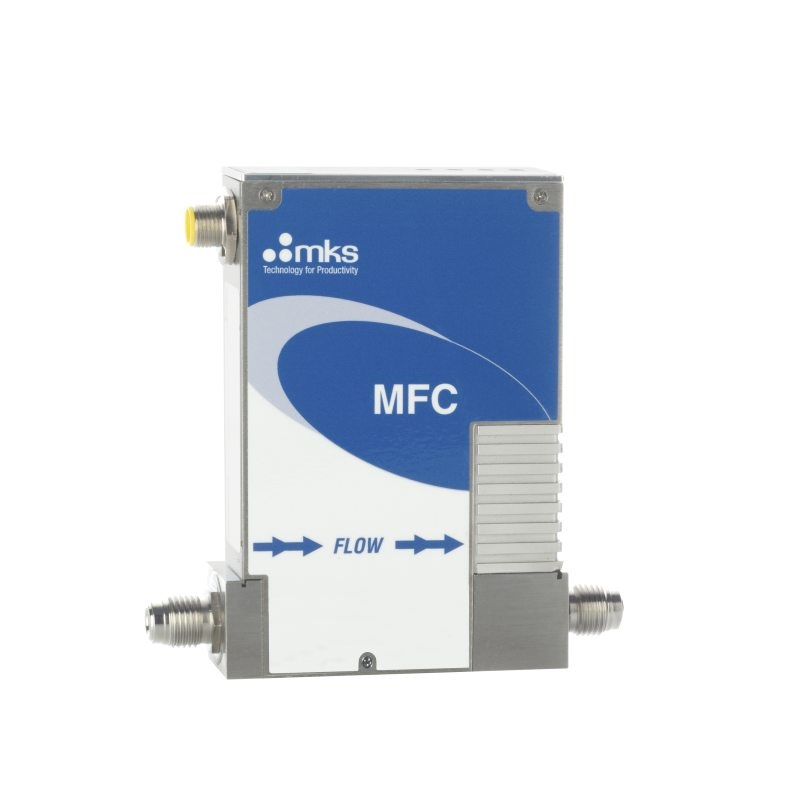

MKS P9B-MFM Mass Flow Meter ທີ່ມີຕົວປ່ຽນຄວາມກົດດັນແບບປະສົມປະສານ (5-50000 sccm)
Full Scale Flow Range: 5-50000 sccm
Measurement Range: 0.1-100% of Full Scale
Maximum Inlet Pressure: 500 psig
Proof Pressure: 1000 psig
Burst Pressure: 1500 psig
Typical Accuracy: ±1% of set point for 20-100% Full Scale
±0.2% of Full Scale for 2-20% Full Scale
Repeatability: ±0.3% of Reading
Resolution: 0.1% of Full Scale
Zero Temperature Coefficient: <0.05% of Full Scale./°C
Span Temperature Coefficient: <0.08% of Reading./°C
Inlet Pressure Coefficient: <0.02% of Reading/psi
Operating Temperature: 10-50°C
Storage Humidity: 0 to 95% relative humidity, non-condensing
Storage Temperature: -20° to 80°C (-4° to 149° F)
Temperature Display: 0-100°C
Temperature Accuracy: ±2°C
Temperature Resolution: 0.1°C
Display: 4 digits for value, 4 characters for unit
Pressure Display: 0-100 psia
Pressure Readout Units: psia, kPA
Pressure Accuracy: 1% Full Scale
Pressure Resolution: 0.1 psia
Weight: <2.5 lbs (1.1kg)
Compliance: CE
Power Requirements: +15 to +24 VDC @ 200mA max
Analog I/O Connector: 15-pin Type “D” Male, 9 pin Type “D” Male
Flow Input Output Signal: 0-5 VDC
DeviceNet Connector: 5 pin microconnnector (DeviceNet)
RS485 Connector: 9 pin Type D male
For specific range please check the attachment below!
