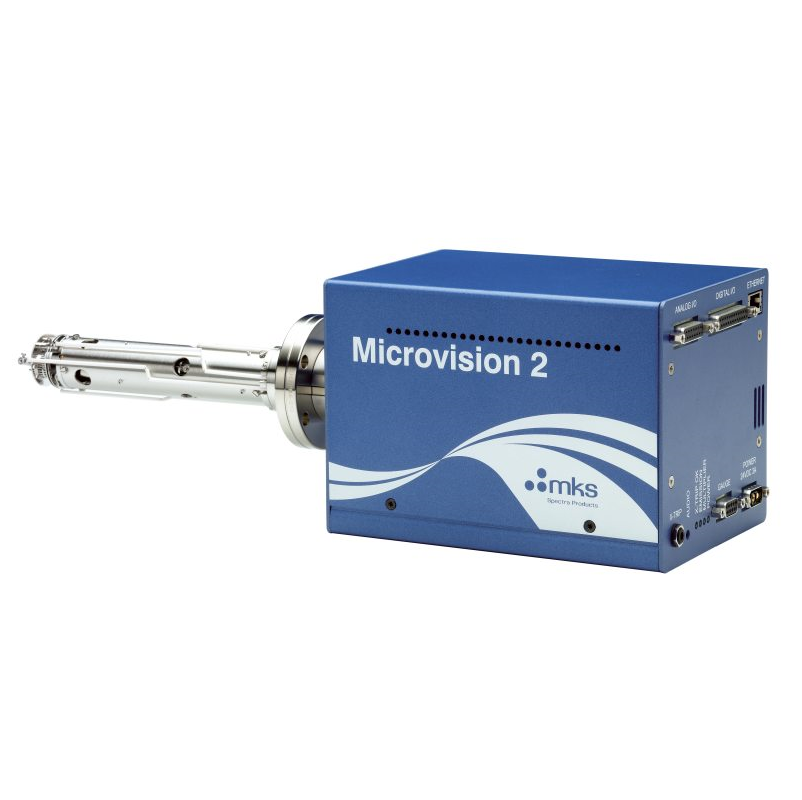

MKS MICROVISION-2 ເຄື່ອງວິເຄາະອາຍແກັສຕົກຄ້າງທີ່ຍືດຫຍຸ່ນ, ປະສົມປະສານພ້ອມ (100, 200, 300 amu)
ຜູ້ຜະລິດ: MKS Model: MICROVISION-2 - ຕິດຕໍ່ພົວພັນ
Measurement Technique: Mass Spectrometry
Mass Range: 100, 200, or 300 amu
Detector: Faraday
Faraday: 1.5e-11 Torr (2e-11 mbar)
Filaments: Tungsten or Thoria coated Iridium
Maximum Analyzer Operating Pressure: 7.6 x 10^-5 Torr
Ion Source Sensitivity: 2.0 x 10^-4 A/mbar
Minimum Detectable Concentration: 3 standard deviations of baseline noise at 300 ms integration
Resolution: Better than 10% valley for peaks of equal height across mass range
Bake Out Temperature: 250°C (with extender or electronics removed)
UHV Out-gassing Rate: <1e-9 mbar -l/s
Microchannel plate: 3.8e-14 Torr (5e-14 mbar)
Single channel EM: 7.6e-15 Torr (1e-14 mbar) triple configuration only
Mounting Flange: DN 40 CF-F
For specific range please check the attachment below!
ລາຍລະອຽດ
- ຮັັບປະກັນຄຸນນະພາບ
- ຮັບປະກັນຂອງແທ້
- ສົ່ງເຖິງທີ່
- ທຳທຸລະກໍາງ່າຍ
