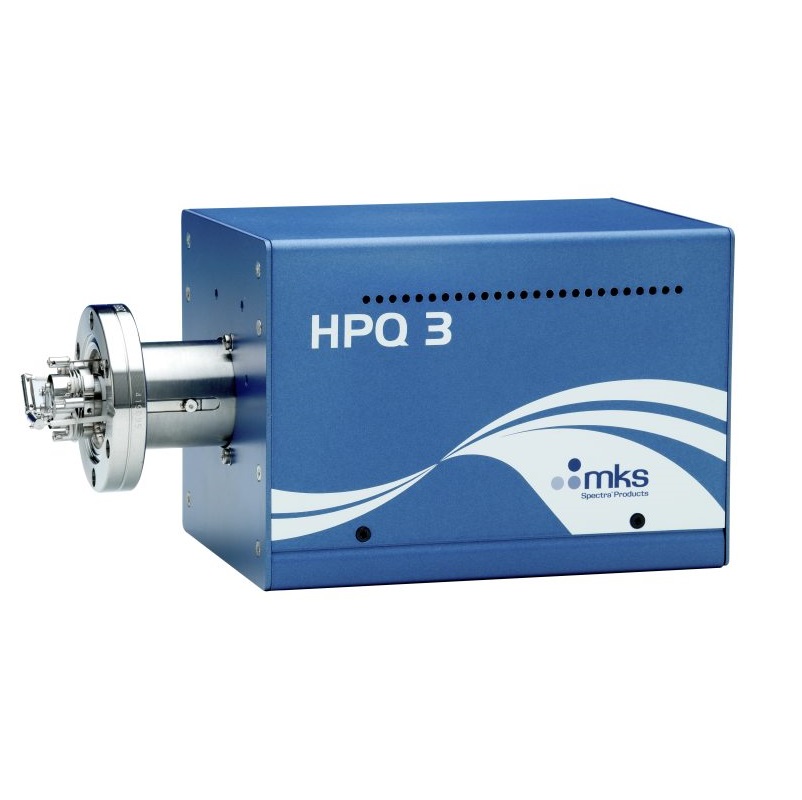

MKS HPQ3 ເຄື່ອງວິເຄາະອາຍແກັສທີ່ຕົກຄ້າງຄວາມກົດດັນສູງ (1-100 amu; 0.001 Torr)
Mass Range: 1-100 amu
Filaments: Twin Tungsten or Thoria Coated Iridium
Detector: Faraday
Maximum Analyzer Operating Pressure: 0.001 Torr (0.0013 mbar)
Minimum Detectable Partial Pressure: 8e^-11 Torr (1e^-10 mbar)
Minimum Detectable Concentration: 5ppm at 0.001 Torr (0.0013 mbar)
Mass Stability: ±0.1 amu over 8 hours at stable ambient
Resolution: Better than 10% valley for peaks of equal height across mass range
Mounting Flange: DN38CF (70mm/2.75inch OD) Conflat
Bake Out Temperature: 250°C with electronics removed
Operating Temperature: Electronics: 10-40°C
Power Requirements: 24V DC, 3A external universal voltage supply (included)
Maximum Operating Conditions: 80% RH (non condensing)
Communication: 10/100 Base-T Ethernet, static or automatically assigned IP addresses
Settling Time: < 20ms to 1 ppm of Maximum Signal
Control Method: CE operating system processor with web-server interface
Command Structure: Documented SDK and ASCII command protocols
Compliance: CE (control unit)
