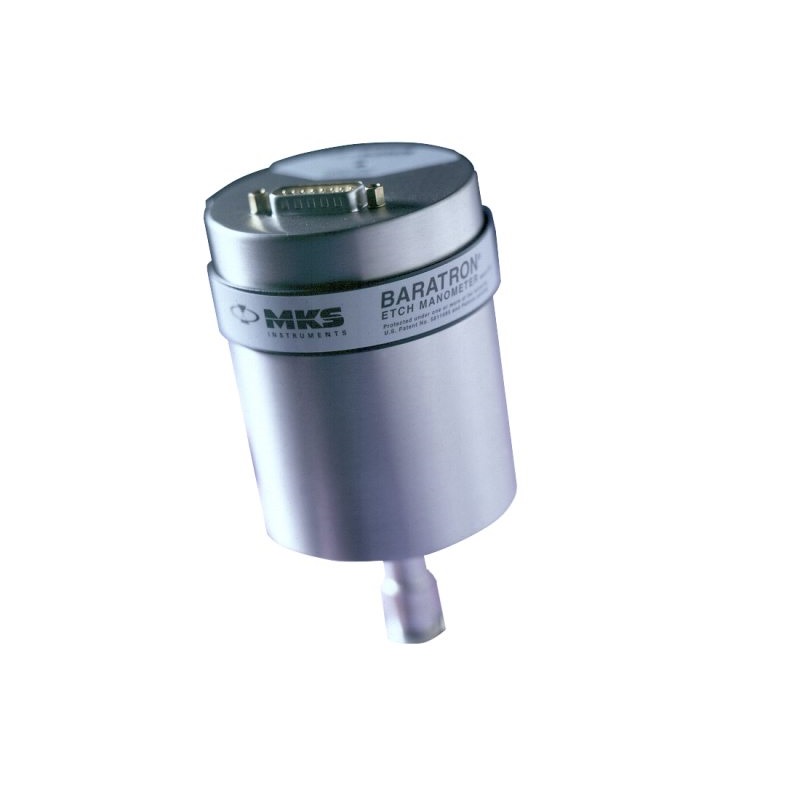

MKS E29H Heated Absolute Baratron® Capacitance Manometer (Etch Sensor; 0.1Torr; 8VCR-F)
Measurement Type: Absolute
Sensor Temperature: 100°C
Full Scale Range: 0.1 Torr
Accuracy: 0.5% of Reading
Resolution: 0.001% of Full Scale
Fitting Type: 8 VCR female
Analog Output: 0-10 VDC
Analog Connector: 9-pin D-sub with Thread Locks
Calibration: Vertical
Zero Temperature Coefficient: 0.01% of Full Scale/°C
Span Temperature Coefficient: 0.02% of Reading/°C
Operating Temperature Range: 15-40°C
Volume: 6.3 cc
Warm-up Time: 4 hours
Overpressure Limit: 45 psia (310 kPa)
Exposed Materials: Inconel®
Power Requirements: ±15 VDC ±5% @ 0.5 Amps
Indicators: No
Compliance: CE
For specific range please check the attachment below!
