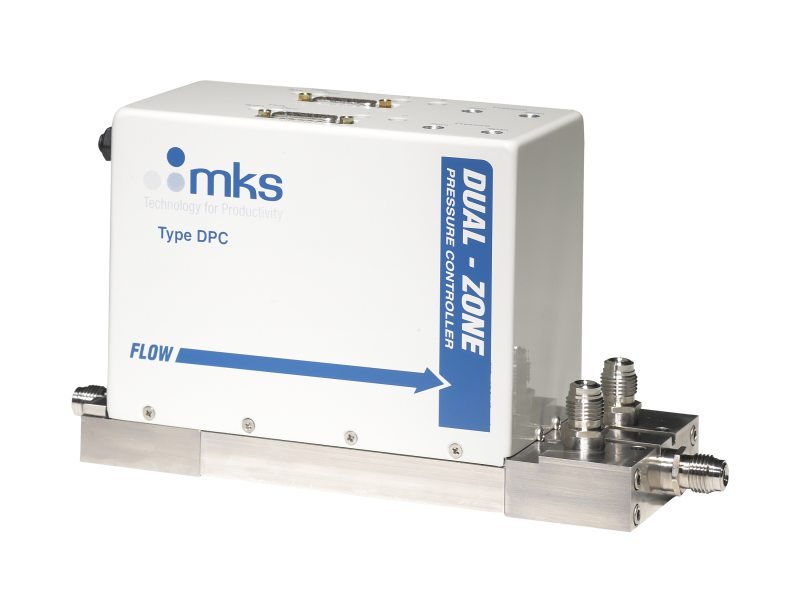

Type: Dual Pressure Controller
Control Method: Absolute pressure capacitance manometer
Pressure Range: 10, 20, 50, 100 Torr
Fitting Type: Swagelok® 4 VCR® male compatible
Pressure Control Accuracy: ±0.5% of Reading
Transducer Over Pressure Limit: 45 psia or 200% Full Scale, whichever is greater
Control Mode: Analog Integral Adjustments: 10 positions (0 through 9)
Analog Proportional Adjustments: 10 positions (0 through 9)
Control Range: 10-100% Full Scale
Operating Temperature: 15 to 50°C (59 to 122°F)
Storage Temperature: -20 to 80°C (-4 to 176°F)
Storage Humidity: 0 to 95% Relative Humidity, non-condensing
Flow Measurement Range: 10, 20, 50, 100 sccm
Maximum Inlet Pressure: 45 psia
Flow Accuracy: ±1.0% of Full Scale
Cable Length: 100 feet (maximum)
Weight: 10.5 lbs. (4.8 Kg)
Dimensions: 10.46 in (including fittings) x 3.36 in x 5.35 in
26.56 cm (including fittings) x 8.53 cm x 13.59 cm
For specific range please check the attachment below!
