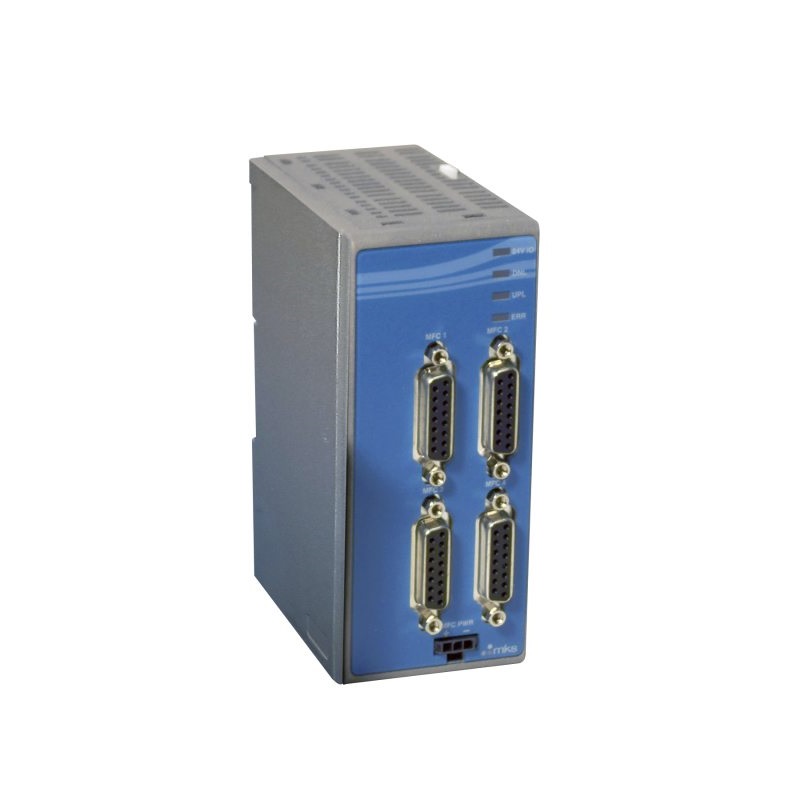

MKS AS11890G-02 ໂມດູນຄວບຄຸມການໄຫຼເຂົ້າມະຫາຊົນ (DB15, 4 channels)
ADC Native Resolution: 14-bit
Auxiliary Power Supply: 24V ±5%, This input will be used to power MFCs connected through IO connector. Each power output to MFC should be protected separately.
Power Consumption: Assuming each MFC consumes 250 mA and all AOs are fully loaded ≥24 V_IO@1.5 Amp, 24 V_CORE@ 0.15 Amp
Connector: 15 pin D-sub
Analog Input Maximum Integral Non-linearity: ±2LSB (14-bit @ 14v)
Analog Input Number of AO Channels: 16, Single Ended, (4 for each MFC: Valve test point, Flow signal output, Optional input, Pressure output)
Analog Input Voltage Range: -2V to 14V
Minimum Input Impedance: 150 kOhm
Timing: Valve override 100 msec + response time (Digital Output)
Operating Temperature: 0 - 55°C
Storage Temperature: -40 - 85°C
Humidity: 5 - 85% non-condensing
Dimensions: 52.5 x 125 x 92.3 mm
Mounting: DIN rail
Compliance: CE
