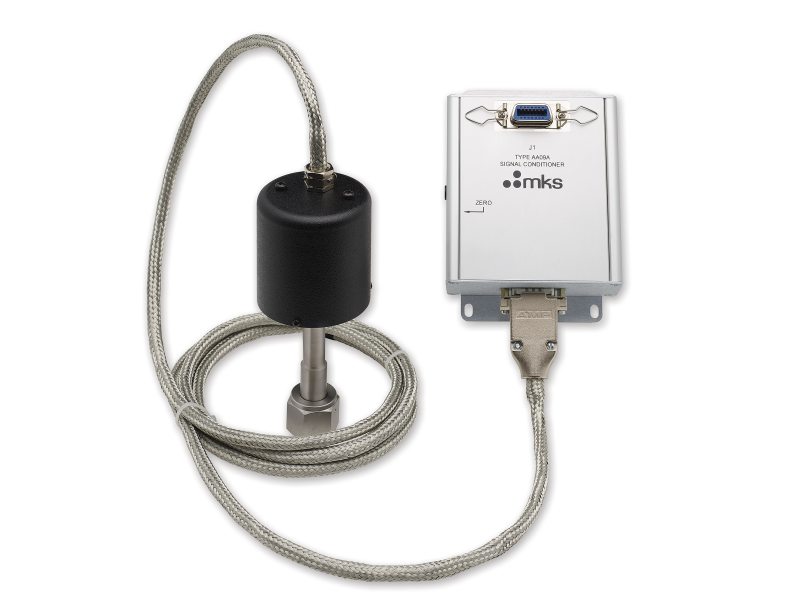

MKS AA09A ຈຸດປະສົງທົ່ວໄປ Absolute Baratron® Capacitance Manometer (1 - 25000 Torr)
Specifications
Full Scale Range: 1, 2, 10, 100, 1000, 5000, 10000, 15000, 20000, and 25000 Torr (mmHg)
Resolution: 0.01% of Full Scale
Accuracy: 0.5% of Reading (± temperature coefficients)
Temperature Coefficients:
Zero: 0.02% Full Scale/°C
Span: 0.04% of Reading
Ambient Operating Temperature:
Sensor: 0° to 150°C (bakeable to 200°C with cable removed)
PreAmp: 0° to 50°C
Overpressure Limit: 120% of sensor F.S. or 35 psia whichever is greater
Materials Exposed to Gases: Inconel and 316 SST
Volume: 7.0 cc
Input Power Required: ±15 VDC @ 35mA regulated to ±5%
Output: 0 to 10 VDC into >10k
Electrical Connector: 14-pin micro
Fittings: 0.50 inch (12.7 mm) O.D. tube (standard), 8 female VCR®, 1.33 inch (33.8 mm) Conflat®, and NW16-KF
Compliance: CE
For specific range please check the attachment below!
