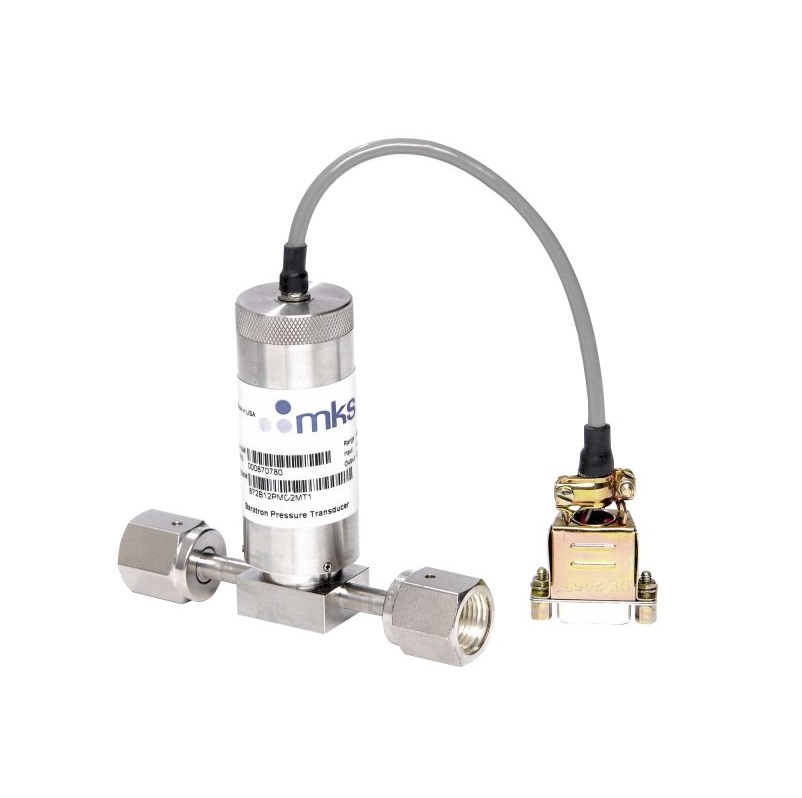

MKS AA08B ຕົວປ່ຽນຄວາມກົດດັນ Micro-Baratron® (100 psia; 4-20 mA)
Configuration: Flow-through
Measurement Type: Absolute
Full Scale Pressure: 100 psia
Accuracy: 1.0% of Reading
Analog Output: 4-20 mA
Fitting Type: 0.25 in. weld stub
Face to Face Length: 2.045 in.
Electrical Connector: 6 ft. flying leads
Zero Temperature Coefficient: 0.02% of Full Scale/°C
Span Temperature Coefficient: 0.04% of Reading/°C
Overpressure Limit: 150 psia
Burst Pressure: 1,000 psia
Exposed Materials: Incoloy®
Surface Finish: <5 µin Ra
Enclosure: NEMA 4
Power Requirements: 13-32 VDC
Operating Temperature Range: 0-50°C (32-122°F)
Display: No
Compliance: CE
For specific range please check the attachment below!
