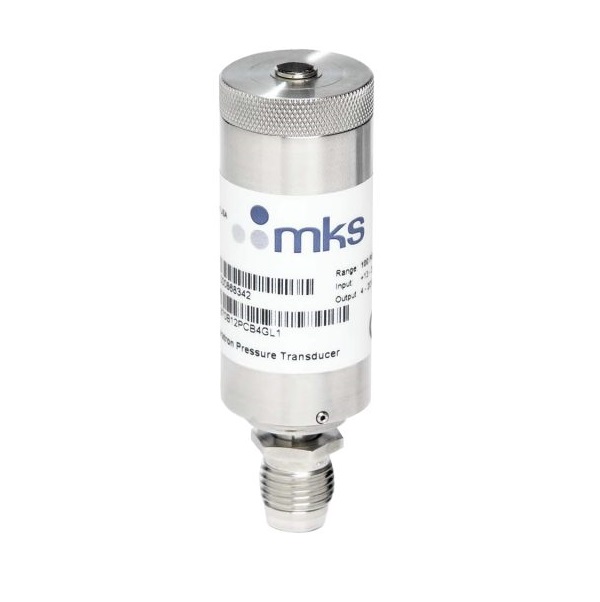

MKS AA07B ຕົວປ່ຽນຄວາມກົດດັນ Micro-Baratron® (100psia; 0-10 VDC; 15-pin HD)
Configuration: Single-ended
Measurement Type: Single-ended
Full Scale Pressure: 100 psia
Accuracy: 1.0% of Reading
Analog Output: 0-10 VDC
Fitting Type: 0.25 in. weld stub
Electrical Connector: 15-pin high density type D
Zero Temperature Coefficient: 0.02% of Full Scale/°C
Span Temperature Coefficient: 0.04% of Reading/°C
Overpressure Limit: 150 psia
Burst Pressure: 1,000 psia
Exposed Materials: Incoloy®
Surface Finish: <5 µin Ra
Power Requirements: 13-32 VDC
Operating Temperature Range: 0-50°C (32-122°F)
Display: LDM-C (Red LED)
Compliance: CE
For specific range please check the attachment below!
