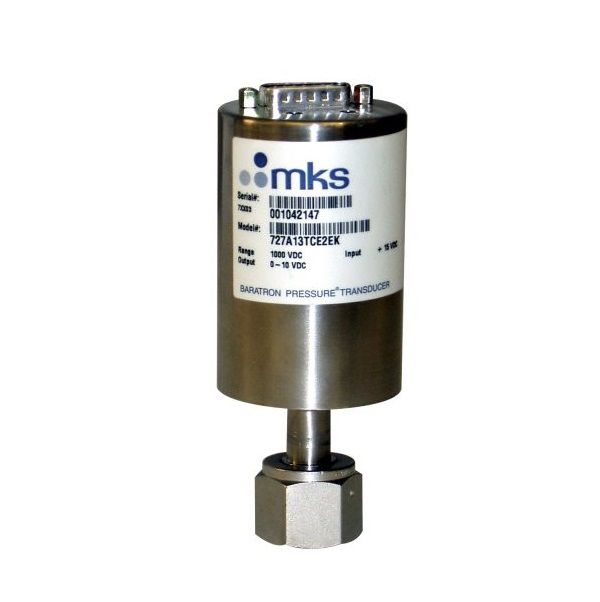

Sensor Type:Capacitance Manometer
Measurement Type:Absolute
Full Scale Range:10 Torr
Sensor Temperature:45°C
Fitting Type:8 VCR female
Analog Output:0 - 10 VDC
Electrical Connector:9-pin D-sub
Accuracy:0.50% of Reading
Response Time:<75 msec
Zero Temperature Coefficient:0.004% of Full Scale/°C
Span Temperature Coefficient:0.030% of Full Scale/°C
Operating Temperature Range:15 - 40°C
Overpressure Limit:45 psia or 2 x Full Scale range, whichever is greater
Burst Pressure:10 x Full Scale range or 90 psi, whichever is greater
Exposed Materials:Inconel®
Power Requirements: 13 - 32 VDC
For specific range please check the attachment below!
