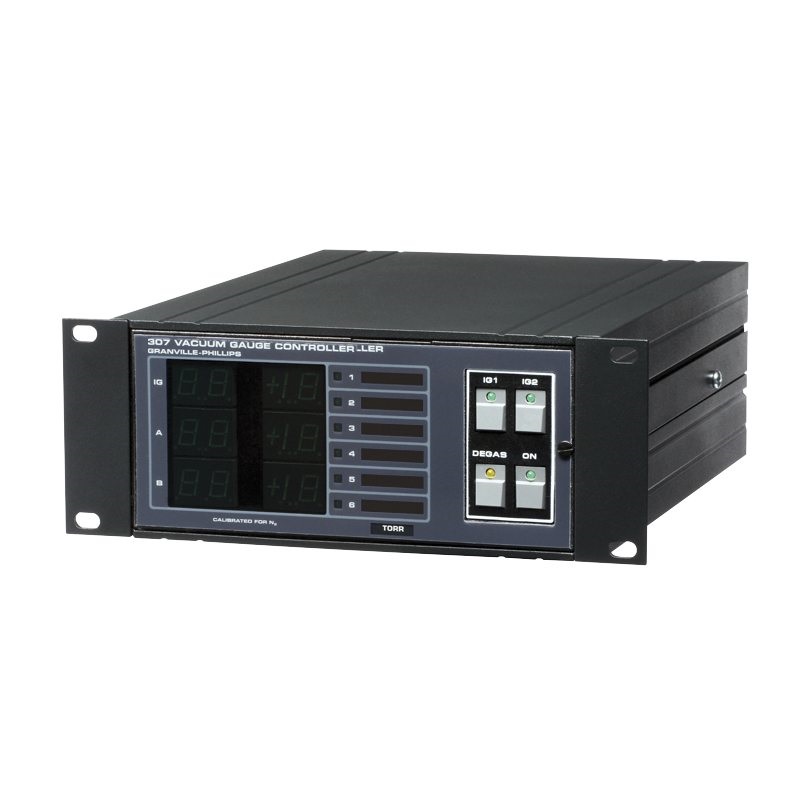

MKS 307 ຕົວຄວບຄຸມເຄື່ອງວັດສູນຍາກາດ Bayard-Alpert (mbar; Europe 220VAC)
Measurement Range: 7 decades within above limits for given emission setting and tube sensitivity
Lower Measurement Limit: 1 x 10-10 Torr with 10 mA emission and tube sensitivity of 10/Torr
Upper Measurement Limit: 2 x 10-2 Torr with 0.1 mA emission and tube sensitivity of 10/Torr
Display: Digital (green LED)
Display Update Rate: 0.5 second typical
Units: mbar
Compatible with: 274 Ionization Gauge
Electrical Plug: Europe 220 VAC
Power Requirements: 100/115/230 ±10% VAC, 250 Watts, 50 or 60 Hz
Interface: No
Relays: 0
Emission Current: Controlled, adjustable from 0.01 to 10.0 mA
Operating Temperature: 40°C maximum, ambient
Mounting: Side by Side
Output: Logarithmic: 1 volt/decade, 0 - 10 VDC, analog
Lower Measurement Limit with UHV: 2 x 10-11 Torr with 10 mA emission and tube sensitivity of 25/Torr
